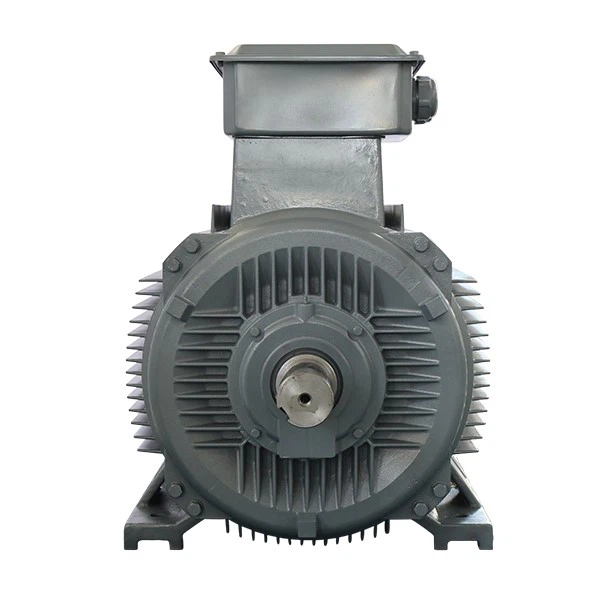

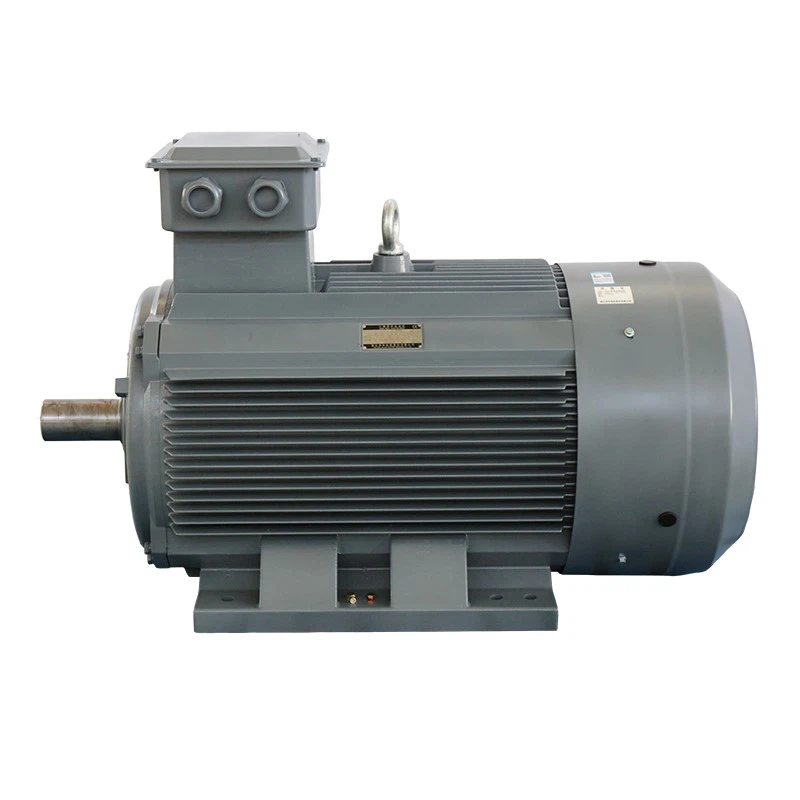

3 Hp Ac Motor

A 3 HP AC motor is a robust and high-performance electric motor designed for larger-scale applications. With a power output of approximately 2.2 kW, it is ideal for driving heavy machinery, large pumps, compressors, and industrial fans. This motor typically operates on standard AC voltage, such as 230V or 460V, and is available in various frequency options like 50Hz or 60Hz. Its durable construction, including materials like cast iron or aluminum, ensures long-lasting performance and reliability in demanding industrial environments.

Send Inquiry

3 HP Electric Motors

Power Output and Efficiency
Power Output: The 3 HP motor has a power output of approximately 2.2 kilowatts, which can meet the power requirements of high-load equipment. It is suitable for equipment such as large industrial machinery, heavy pumps, and high-power fans, and can provide stable power support in various high-load application scenarios. Whether it is on the production line of the manufacturing industry or the equipment drive of the construction industry, this motor can do it.

Energy Efficiency: The motor adopts a high-efficiency design to optimize the efficiency of converting electrical energy into mechanical energy. This high efficiency not only reduces power consumption, but also reduces operating costs. The motor performs well under high load conditions, which can improve the operating efficiency of the equipment while reducing energy waste, making long-term operation more economical.

Electrical Specifications and Compatibility
Voltage Range: The motor is designed to support multiple voltage levels, including 230V and 460V AC. This voltage compatibility allows the motor to be used in different power systems and adapt to different power standards around the world. This flexibility means that users can find a suitable power supply whether in North America or Europe to ensure the normal operation of the motor.

Frequency Adaptability: The motor's operating frequency options include 50Hz and 60Hz, which can adapt to power frequency standards in different regions. This design ensures the motor's global applicability, enabling it to work stably in a variety of industrial environments. Different frequency options ensure the motor's high efficiency and stable operation.

Structural Design and Durability
Housing Material: The motor housing is made of durable cast iron or aluminum alloy. The cast iron housing has extremely high mechanical strength and can withstand shock and vibration in heavy-duty operations, making it suitable for use in harsh environments. The aluminum alloy housing is lightweight and has good heat dissipation performance, making it very suitable for light industry and applications with high ambient temperatures.

Bearing System: Equipped with high-quality sealed ball bearings, these bearings are precisely designed to withstand long-term high-load operation. Sealed bearings effectively prevent the intrusion of dust and impurities, reducing wear and maintenance requirements. The long-term lubrication function of the bearing ensures the smooth operation of the motor, extends the service life of the motor, and reduces the need for frequent maintenance.

Technical specifications

Parameter	Description
Power Output	3 HP (approximately 2.2 kW)
Voltage	230V or 460V AC
Frequency	50Hz or 60Hz (depending on region)
Rated Speed	1800 RPM or 3600 RPM (depending on model)
Phases	Single-phase or Three-phase
Insulation Class	Class F (155°C) or Class B (130°C)
Efficiency	85% - 95% (depending on load and design)
Housing Material	Cast Iron or Aluminum Alloy
Cooling Method	Natural Cooling or External Fan Cooling
Protection Class	IP54 - IP55 (dust and water resistance)
Starting Method	Capacitor Start (Single-phase) or Direct Start (Three-phase)
Bearing Type	Sealed Ball Bearings (lifetime lubricated)
Noise Level	≤70 dB(A)
Operating Temperature Range	-10°C to +50°C
Weight	25 kg - 60 kg (varies by model and material)
Mounting Type	Foot Mount (B3), Flange Mount (B5), or Combined Mount (B35)
Certification	CE, UL, RoHS
Vibration Level	<0.15 mm/s (depending on balance and installation)

Application of this motor in industrial machinery

Mobile Mineral Processing Equipment: The State of the Art (Part 3) - Mineral Processing

Processing Machinery
Machine Tools: This motor is widely used in various machine tool equipment, such as milling machines, lathes, and drilling machines. It provides the required power support for machine tools, enabling them to operate stably under high loads. The high speed and reliability of the motor improve processing accuracy and production speed, meeting the needs of precision manufacturing.

Cutting Machine: In cutting operations, the cutting machine driven by the 3 HP AC motor is able to process materials such as metal, wood, and plastic. The strong power of the motor ensures the efficiency and accuracy of the cutting process, making it suitable for a variety of industrial processing tasks.

Compressor

Air Compressor: The 3 HP motor is used to drive large air compressors to provide a stable air source for pneumatic tools and industrial equipment. These compressors are often used in factories, workshops, and other industrial environments to meet the needs of high loads and high pressures, ensuring the normal operation of pneumatic equipment.

Liquid Compressor: The motor can also be used to drive liquid compressors to handle high-pressure compression tasks for various liquids. Its stable power output and high efficiency ensure the long-term and reliable operation of the compressor.

The Advantages of Ammonia Compressors - California Business Journal

Installation Method:

Structure and installation type (IM code))	IM B3	IM B8	IM B5	IM B6	IM V5	IM V1	IM B7	IM V6	IM V3
Installation diagram
Frame size	63-450	63-160	63-280	63-160	63-160	63-450	63-160	63-160	63-160
Structure and installation type (IM code))	IM V37	IM V17	IM B34	IM V19	IM V18	IM B14	IM V35	IM V15	IM B35
Installation diagram
Frame size	63-132	63-13	63-132	63-132	63-132	63-132	63-160	63-160	63-450

FAQ

1. What types of industrial applications are this motor suitable for?
This motor is suitable for a variety of industrial applications, including driving conveyor systems, automated assembly equipment, heavy-duty pumps and air compressors. It can support high-power equipment and high-load operation, and is widely used in manufacturing, construction, and chemical and pharmaceutical industries. Whether it is material transportation on industrial production lines or liquid handling in cooling systems, this motor can provide stable power support.

2. What is the rated voltage and frequency of the motor?
The motor is designed to support a standard voltage range, including 230V and 460V AC, to adapt to different power supply requirements. It usually operates at 50Hz or 60Hz, depending on the power standards in the region. This flexible voltage and frequency selection ensures that the motor can operate stably in different power systems around the world.

3. How is the cooling system of the motor designed?
The motor is usually equipped with an effective cooling system, including natural cooling and external fan cooling. Natural cooling dissipates heat through the motor casing and is suitable for low to medium load applications. Under high load conditions, external fan cooling can further enhance the heat dissipation effect, prevent the motor from overheating, and ensure stable operation in high temperature environments.

4. What is the starting method of the motor?
The motor can adopt different starting methods, including direct starting and capacitor starting. Direct starting is suitable for applications with light loads, while capacitor starting provides additional starting torque at starting, which is suitable for equipment with heavy loads. Different starting methods can meet various application requirements and provide flexible operation options.

5. What is the noise level of the motor?
The noise level of the motor is usually controlled below 70 dB(A), which makes it suitable for industrial environments with noise requirements. Through precise balanced design and high-quality material use, the motor can reduce noise and vibration during operation and provide a quieter working environment.

6. What is the insulation grade and temperature resistance of the motor?
The insulation grade of the motor is usually F or B. F-class insulation can withstand temperatures up to 155°C, while B-class insulation can withstand temperatures of 130°C. These insulation levels ensure that the motor can maintain safe and stable performance under long-term operation and high temperature environment, and prevent aging and failure of insulation materials.

7. What are the maintenance requirements of the motor?
The maintenance requirements of the motor are relatively low. It is equipped with sealed bearings, which are lubricated and have a long service life and wear resistance. Under normal circumstances, regularly checking the operating status and external connections of the motor, keeping the motor clean and dry, can effectively extend its service life. Maintenance mainly includes checking cable connections, lubricating bearings, and cleaning heat sinks.
