Features and Uses

Series Z4D-Cmachines are newly developed products of our works.The products are found wide use for prime moverin various machinery,such as mill auxiliary in metallurgicha industry,metal cutting machine-tool,papermaking,print, textile,printing and dyeing,cement-making,plastic extruding machine,etc.

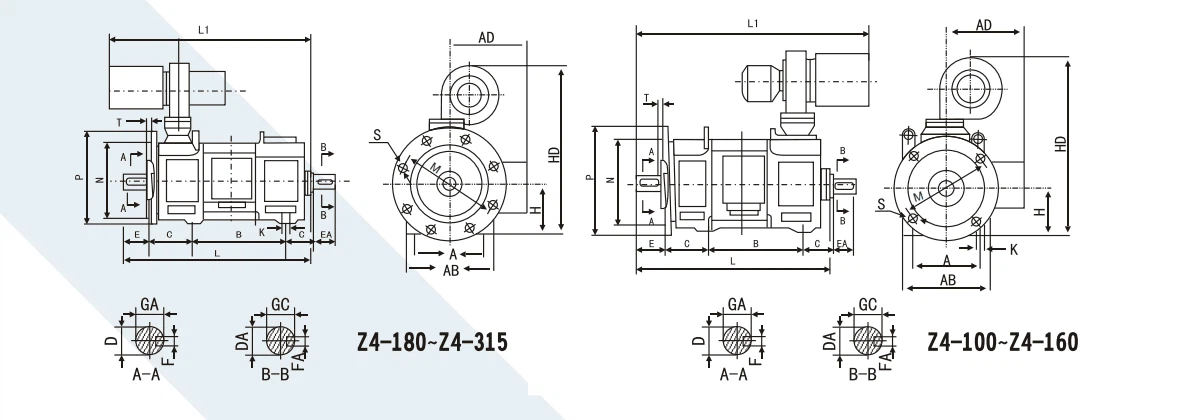

Outline and mounting dimensions of the motors comply with IEC72 Standard,except for the axial distance between the mounting holes(dimension B).

Performance and technical requirements of the motors can be checked in accordance with IEC 34-1 Standard of the

International Electro technical Commission,or DIN 57530 Norm of the Deutsche Industries-Norm.

The angular shape of the machine makes good use of space. The motors have laminated yokes.Which means thatwhen used on reetifier power supplies they can endure both current ripple and rapid current change (load change)under dynamic condition.The stator design leads to high accuracy ofpole spacing and consequent good commutation.

The motors are class Finsulated,with reliable insulating construction and impregnating process,ensuring stable dielectric performance and excellent heat dissipalion.

The motors possess the features of small size,good performance,light weight,largeoutput,high efficiency and reliablity,being able to match the current international advanced level.

The motorscan be lastingly operated fromfully controlled three-phase bridge without a smoothing reactor.Motors for 160V may be operated on single-phase-bridge thyristor In that case,a smoothingreator,whose inductance is specified in the relevant technical data,should be inserted in the armature circuit to suppress ripple current.

Electrical Perfo rmance

1.Date listed in the technical date sheet should beemployed underthe following conditions:

A.Altitude abovesea level maximal,1000m;

B.Cooling air temperature maximal 40℃;

C.Ambient conditions for motors should be free from acidic,alkalifumes of other aggressive gases which corrode insulation;

D.Duty:continuous(S1);

E.Armature and field circuits for motors may beeither operated on static thyristor controlled supplies,or form D- C generator;

F.Performances of motorsall comply with state standard GB755-"Fundamental technical rules forelectrical machines".

2.Standard rated voltage:160V or 440V.Values for 220V, 400Vand 660V or other volgate may be derivedon request.

3.Rated speed:3000,1500,1000,750,600,500,400,300 and 200r/rain,totally nine grades.

Decrease armature voltage to make speed regulating under constant torque,lowering down field voltage to make speed requlating at constantoutput,speed regulating rage:seetechnical date(table 2).

The given multiple of load to rated load of different speed range:see Appendix 1.

The torque can be remained constant by reducing speed via armature voltage weakening below rated value.It is stipulated that armature speed range can be down to the lowest 20r/min at constant torque and stable running.

4.Separateexcitation is thebasic excitation type of the motors.Nominal field voltage:180V.Other excitation voltagesare also acceptableon request.

Forced excitation isallowed with the voltage ofiess than 500V.When a motor is normally running,its excitation current must not be higher than the rated excitation current. Toassure the reliability of insulation of excitation system,the motor must be protected against sell-Induced voltages bya release resistor connected inparallel with thefieldwinding when the excitationi circuit of the motor is interrupted.

Atrated field voltage the value of shunt resistor isabout seven times fieldwinding resistance (coldstate).Whilethe field voltage is higher than nominal voltage,the value of shunt resistance may be lower than seven time field resistance,otherwise higher than seven times.

5.For flame sizeZ4-315,Z4-355,Z4-400 and Z4-450, compensatingwindings are provided.For frame size Z4-450, and Z4-280,the motorsare feasible with a compensating winding too.

6.A marked earthing terninal is provided for the motors.

7.The effieiencies listedinthe date sheet are for rated output, voltage and speed,and includeexcitationloss,excluding that of separate ventilating fans.

Construction

1.Protection,mounting and type of construction:

A.Types of protection of the whole series:IP215.

B.Mounting modes comply with the state Standard GB/T997 stipulated as follows:

2.Methods of cooling:

Modes of cooling for allthe motors are separate cooling,force ventilated.Cooling by flame radially mounted,separately powered ventilating fan,and attached with an air flter.Modes of coolingformotors may be made into three types,namely IC06,IC17and IC37.

A.For Z4-100~Z4-160,the blower if mounted on the non- drive side.

B.For Z4-180~Z4-450,the blower is mounted on the drive side.

C.The required cooling air volume,air pressureand fan motor capacity are shown below:(Table 1)

3.Standard terminal box mounting is on the righthand side seen fromthe drive end of the motor.As an alternative,nounting atthe top or on the left-hand side ispossibl request.

4.Motors,if needed,can befitted with tachogenerator or other acessories at the non-drive end.

5.Motors when directly coupled,must use elasticor flexible couplings.The drive and driven units must be aligned with the utmost care.

Radial forces acting on theshaft-extensions (belt or pinion drive)must not exceedthe valuesgiven in the diagrams in the following pages(see Appendix 2).

The electric motor is made compact and beautiful.The outlet box is big so that it is very convenient to wire and maintain.

Remark:the specification,power and theadjusting range of weak magnetismlisted in thetechnical data sheet is only for reference.In order to continuously adopt the new technology, the data in the sheet may change.

Notice on order

1.Please refer to our cataloguebefore ordering.If the types, ratings you need are not coveredbyour booklet please

contact us.Should you have particular needs.please offer u specific proposal in advance.A contract orpilot production agreement may be made when the requirements are fixed by common consent.

2.Please write clearly the type,output,voltage,speed,duty, type of construction,excitation,field voltage,no.Of shaft- end,location of terminal box,necessary accessories and

spare parts etc.

3.If the bumid-tropieal type required,please mark"TH* behind the original type number.

Motors with thefollowing five methods ofcooling can also be ordered,but prior consultations are needed.

A.Frame size 100 up to 250 may be made intothe totally enclosed,flame cooled motor (IC410).

B.Frame size 160 upto 250 maybe made into the senarately ventilated motor with blower mounted on ins non-drive side (C 05).

C.Frame size 100 up to 200may be made into the self cooled open motor with its owntan mountedon the shaft (IC 01).

D.Framesize 160up to 355 may b made intototally enclosed motor with internal cooling air circulation by independent

air-air heat exchanger mounted on it (C 666).

E.Frame size 160 up to 450maybe made into totally enclosed motor with independent air-water heate changer mounted on it(IC86W).

Technical Date of D-C Motor

Type	Rated Out put	Rated Speed	Speedwith Flield Weakened	Arm. Curr	Field Power	Amm. Circuit Resistance	Amm. Circuit Resistance	Field Inductance	Smooreins Induct.	Efficiency	Moment of Inertia	wt
Type	PN KW	160V 400V 440V r/min	NF r/min	LN A	PF W	R Ω(20℃)	LA mH	LF H	LR mH	EFF. %	GD kg.m²	Kg
Z4-100	2.2	1490	3000	17.9	31.5	1.19	11.2	22	15	67.8	0.044	72
	1.5	955	2000	13.3		2.17	21.4	13	15	58.5
		2630	4000	12		2.82	26	18		78.9
		2960	4000	10.7		2.82	26	18		80.1
	2	1310	3000	6.6		9.12	86	18		68.4
	2.2	1480	3000	6.5		9.12	86	18		70.6
	1.4	860	2000	5.1		16.76	163	18		60.3
	1.5	990	2000	4.77		16.76	163	18		63.2
Z4-1122-1	3	1540	3000	24	320	0.786	7.1	14	20	69.1	0.072	100
	2.2	975	2000	19.6		1.498	14.1	13	20	62.1
	5.5	2630	4000	16.4		1.933	17.9	17		79.9
	5.5	2940	4000	14.7		1.933	17.9	17		81.1
	2.8	1340	3000	9.1		6	59	17		71.2
	3	1500	3000	8.6		6	59	17		72.8
	1.9	855	2000	6.9		11.67	110	13		61.
	2.2	965	2000	7.1		11.67	110	13		63.5
Z4-1122-2	4	1450	3000	31.3	350	0.567	6.2	14	12	72.6	0.088	107
		1070	2000	24.8		00	10.3	14	10	66.8
		2660	4000	20.4		1.305	14	19		82.4
	7.5	2980	4000	19.7		1.305	14	19		83.5
	3.7	1320	3000	11.7		4.24	48.5	19		74.1
	4	1500	3000	11.2		4.24	48.5	19		76
	2.6	895	2000	9		7.62	83	14		65.
		1010	2000	9.1		7.62	83	14		67.3
Z4-1124-1	5.5	1520	3000	42.5	500	0.38	3.85	6.8	6.5	73	0.128	106
		990	2000	33.7		0.741	7.7	6.7	4.5	64.9
	10	2680	3500	29		0.89	9	6.8		82.7
	11	2950	3500	28.8		0.89	9	6.8		83.3
	5	1340	1800	15.7		3.01	30.5	6.8		74.3
	5.5	1480	1800	15.4		3.01	30.5	6.8		75.7
	3.7	855	1100	13		5.78	60	6.7		65.2
	4	980	1100	12.2		5.78	60	6.7		68.7
Z4-1124-2	5.5	1090	2000	43.5	570	0.441	5.1	7.8	6	69.5	0.156	114

Type	Rated Out put	Rated Speed	Speedwith Flield Weakened	Arm. Curr	Field Power	Amm. Circuit Resistance	Amm. Circuit Resistance	Field Inductance	Efficiency	Moment of Inertia	Wt
	PN KW	160V 400V 440V r/min	NF r/min	LN A	PF W	R Ω(20℃)	LA mH	LF H	EFF. %	GD kg.m²	Kg
Z4-132-1	18.5	2610	4000	52.2	650	0.368	5.3	6.5	85	0.32	140
	18.5	2850	4000	47.					85.9
	10	1330	2100	30.		.309	18.9	8.9	79.4
	11	1480	2200	29.6					80.9
	7	865	1600	22.7		2.56	37.5	6.3	71.9
	7.5	975	1600	21.4					74.5
Z4-132-2	20	2800	3600	55.4	730	0.226	3.65	10	87.8	0.4	160
	22	3090	3600	55.3					88.3
	15	1360	2500	44.5		0.811	13.5	7.7	81.2
	15	1510	2500	39.5					83.4
	10	905	1400	31.1		1.565	26	6	75.6
	11	995	1400	30.5					77.7
Z4-132-3	27	2720	3600	74.5	800	0.1905	3.4	21	88.2	0.48	180
	30	3000	3600	75					88.6
	18.5	1390	2100	53.2		0.531	9.8	6.6	83.6
	18.5	1540	2200	476					84.7
	13.5	945	1600	40.5		0.976	19.4	6.5	79.4
	15	1050	1600	40.5					80.5
Z4-160-11	33	2710	3500	93.4	820	0.1835	3.15	10	87.4	0.64	220
	37	3000							88.5
	19.5	1350	3000	58.8		0.593	10.4	7.7	80.4
		1500							82.6
22 Z4-160- 21	40.5	2710	3500	113	920	0.1426	2.7	10	88.2	0.76	242
	45	3000							89.1
	16.5	900	2000	50.5		0.862	17.7	6	77.9
	18.5	1000							79.4
32 Z41-160-31 31	49.5	2710	3500	137	1050	0.097	2.07	11	89.1	0.88	268
	55	3010							90.2
	27	1350	3000	77.8		0.376	8.3	10	84.7
	30	1500							85.7
	19.5	900	2000	59.1		0.675	15.2	6.3	79.1
	22	1000							81.7
Z4-180-11	33	1350	3000	95.4	1200	0.29	5.8	7.1	84.7	1.52	326
	37	1500							86.5
	16.5	670	1900	51.4		0.947	17.6	5.6	75.5
	18.5	750							78.1
	3	540	1400	42.4		1.264	25	5.6	73
	15	600							74.1
22 21 Z4-180-21 21 21	67	2710	3400	185	1400	0.0555	1.16	6.9	89.5	1.72	350
	75	3000							90.7
	40.5	1350	2800	15		0.2125	4.65	6.6	85.8
	45	1500							87
	27	900	2000	79		0.419	9.3	7.3	82.2
	30	1000							83.7
	195	670	1400	61		0.756	15.7	7.1	77.3
	22	750							79.7
	165	540	1600	52		1.003	21.9	5	73.8
	18.5	600							76.8
Z4-180-31	33	900	2000	97		0.332	7.7	6.6	82.8	1.92	380
		1000							83.6
	19.5	540	1250	62	1500	0.801	19	6.6	74.8
	22	600							76.6
42 Z4-180-41 41	81	2710	3200	221	1700	0.051	1.16	12	91	2.2	410
	90	3000							91.3
	50	1350	3000	139		0.1417	3.2	5.7	87.5
	55	1500							87.7
	27	670	2000	80		0.454	10.4	6.3	80.4
	30	750							81.1
12 11 Z4-200- 11 11	99	2710	3000	271	1400	0.0373	0.83	7.62	90.2	3.68	485
	110	3000							91.6
	40.5	900	2000	118		0.2653	8.4	7.01	83.4
	45	1000							85.5
	33	670	1600	99		0.369	10.6	7.77	80.2
	37	750							82.9
	19.5	450	1000	64		0.93	21.9	7.3	72.2
	22	500							77.4
21 Z4-200- 21	67	1350	3000	188	1500	0.0885	2.8	6.78	88.7	4.2	530
	75	1500							89.6
	27	540	1000	82		0.535	14	9.64	78.8
	30	600							80.4
32 31 31 Z4-200- 31 31 31	119	2710	3200	322	1750	0.0266	0.79	10.9	91.7	4.8	580
	132	3000							92.4
	81	1350	2800	224		0.0771	2.6	5.61	88.7
	90	1500							90
	49.5	900	2000	141		0.1751	4.8	8.54	85.6
	55	1000							87.1
	40.5	670	1400	19		0.283	8.5	8.35	82.5
	45	750							84.1
	33	540	1200	101		0.42	12.2	8.42	79.6
	37	600							82
	27	450	750	84		0.593	17.1	8.4	77.5
	30	500							79.5
Z4-225-11	99	1360	3000	276	2300	0.0664	2.1	4.45	87.9	5	680
	110	1500							89.4
	67	900	2000	193		0.1406	4.9	4.28	84.4
	75	1000							86.5
	49	680	1300	146		0.2433	8.7	5.77	81.2
	55	750							84
	40	540	1200	123		0.356	9.5	6.38	78.2
	45	600							80.8
	33	450	1000	103		0.476	15.2	6.10	76.5
	37	500							78.8
Z4-225-2	49	540	1000	148		0.2648	9.5	4.14	79.3	5.6	740
	55	600							82.4
	40	450	1000	125	2470	0.397	13.7	5.41	76.6
	45	500							78.9
Z4-225-31	119	1360	2400	327	2580	0.0454	1.5	5.33	89.3	6.2	800
	32	1500							90.5
	81	900	2000	227		0.093	3.4	5.3	86.9
	90	1000							88
	67	680	2250	197		0.167	5.1	5.44	82.5
	75	750							85.1
12 Z4-250- 11	44	1360	2100	399		0.0444	1.3	4.29	88.8	8.8	890
	160	1500							89.9
	99	900	2000	281	2500	0.0911	2.4	4.55	86.2
	110	1000							88.1
Z4-250-21	167	1360	2200	459	2750	0.0325	0.91	4.28	89.8	10	970
	85	1500							90.5
	81	680	2250	234		0.1306	3.9	5.41	83.2
	90	750							85.2
Z4-250-31	180	1360	2400	493	2850	0.1281	0.87	5.32	90.4	11.2	1070
	200	1500							91.5
	119	900	2000	334		0.0668	1.7	5.46	87.4
	32	1000							89.1
	67	540	2000	204		0.202	4.0	4.0	80.8
	75	600							84.6
	49	450	1200	152		0.305	7.3	5.1	78.5
	55	500							82.4
41 42 Z4-250-41 41 41	198	1360	2400	539	3000	0.0237	0.93	6.19	91	12.8	1180
	220	1500							91.7
	144	900	2000	401		0.0485	1.9	4.63	88.11
	160	1000							89.2
	99	680	1900	283		0.0102	2..6	5.3	85.8
	110	750							87.4
	81	540	1600	236		0.141	4.7	6.36	83.4
	90	600							85
	67	450	1800	201		0.195	5.1	4.97	80
	75	500							83.4
Z4-280-11	226	1355	2000	614	3100	0.02134	0.69	4.58	90.9	16.4	1280
	250	1500							91.6
22 21 Z4-280- 21 21	253	1355	1800	684	3500	0.01796	0.77	5.3	91.5	18.4	1400
	280	1500							92.1
	180	900	2000	498		0.0373	1.2	4.46	89.1
	200	1000							90.1
	119	675	1600	333		0.0662	2.3	4.37	87.1
	132	750							88.6
	99	540	1500	281		0.093	3.1	4.57	84.7
	110	600							86
32 31 Z4-280-32 31 31	284	1360	1800	768	3600	0.01493	0.59	6.94	91.7	21.2	1550
	315	1500							92.6
	198	900	2000	545		0.0314	1.1	5.54	89.7
	220	1000							90.6
	144	675	1700	402		0.0532	2	5.47	87.8
	160	750							89.1
	118	540	1000	339		0.0830	2.6	5.77	85.4
	132	600							86.8
	80	450	1400	234		0.1377	5.3	9.03	84.1
	90	500							85.4
42 Z4-280-41 41	225	900	1800	616	4000	3.02545	0.96	5.29	90.2	24	1700
	250	1000							91.1
	166	675	1900	464		0.0457	1.7	5.19	88.1
	185	750							89.4
	98	450	1000	282		0.0993	3.7	6.86	85.1
	110	500							86.9
Z4-315-12	321	1360	1800	B65	3850	0.015	0.39	8.64	92.2	21.2	1890
	355	1500							92.8
	253	900	1600	690		0.2355	0.46	5.06	90.4
	280	1000							91.6
	180	680	1900	500		0.04371	0.83	4.97	88.4
	200	750							89.4
Z4-315-11	144	540	1900	409		0.06919	1.3	7.6	86.4
	160	600							87.4
	118	450	1600	344		0.1	2.3	9.43	84.4
	132	500							86.3
	98	360	1200	294		0.1415	2.9	9.96	81.7
	110	400							84.3
Z4-315-22	284	900	1600	772	4350	0.02034	0.49	5.91	91	24	2080
	315	000							91.5
	225	680	1600	624		0.03392	0.74	18.8	88.7
	250	750							89.6
Z4-315-21	166	540	1600	468		0.05382	1.2	25	87.2
	185	600							88.5
	143	450	1500	413		0.076	1.5	19	84.7
	190	500							86
Z4-315-32	320	900	1600	867	4650	0.01658	0.39	23.1	91.0	27.2	2290
	355	1000							92.0
	252	680	1600	697		0.03043	0.82	21.5	89.1
	280	750							89.8
	180	540	1500	501		0.04536	0.95	31.6	88.2
	200	600							89.4
Z4-315-31	118	360	1200	344		0.1000	2.1	23.3	83.2
	132	400							85.3
Z4-315-42	361	900	1400	971	5200	0.01302	0.33	29	92.1	30.8	2520
	400	1000							92.7
	284	680	1600	778		0.02364	0.67	20.8	90
	315	750							90.7
	225	540	1600	626		0.03554	0.87	21.9	88.3
	250	600							89
Z4-315-41	166	450	1500	460		0.055	1.4	37.4	87.3
	185	500							88.3
	143	360	1200	416		0.0803	1.8	22.2	84
	160	400							85.3
Z4-355-12	406	900	1500	094	4700	0.01259	0.36	37.6	91.8	42	2890
	50	1000							92.8
	321	680	1500	877		0.02087	0.59	28.1	90.4
	355	50							91.2
Z4-355-11	253	540	1500	697		0.02952	0.91	22	89.2
	280	00							90.2
	80	450	1500	506		0.0502	1.5	8.91	87.6
	200	500							88.9
	166	360	1200	478		0.066	1.8	22.4	84.9
	185	400							85.9
Z4-355-22	361	680	1600	978		0.01583	0.44	15.6	90.8	46	3170
	00	750							91.7
	284	540	1500	783		0.02676	0.81	34.7	89.5
	315	600							90.5
	225	450	1600	624		0.03462	1.0	20.5	88.4
	250	500							89.5
Z4-355-21	180	360	1200	544	5600 6000	0.05642	0.6	35.5	86.3	52	3490
	200	400							87.5
Z4-355-32	406	680	1100	1098		0.01362	0.39	19	91.3
	450	750							92.1
	320	540	1600	877		0.02153	0.7	24.3	89.9
	355								91
	84	450	1500	789		0.0293	0.91	18.5	88.3
	315	500							89.5
Z4-355-31	197	360	200	599		0.04957	1.3	34.6	86.6
	220	400							88.4
Z4-355-42	361	540	1300	985	6500	0.01836	0.64	29.6	90.5	60	3840
	00	600							91.5
	320	450	1200	882		0.02361	0.76	17.7	88.9
	355	500							89.2
	225	360	200	627		0.0358	1.2	17.7	87.5
	250	400							88.8
22 Z4-400-21 21	435	680	1400	1175	5700	0.0139	0.33	7.385	90.8	74	4500
	480	750							92
	235	360	1200	675		0.0497		7.3	84.8
	260	400							86.3
	180	270	900	537		0.0804	1.6	7.44	81.8
	200	300							83.1
32 32 Z4-400-32 31 31	500	680	1400	1340	6400	0.0112	0.3	9.57	91.2	84	4900
	550	750							92.5
	400	540	1300	1083		0.0162	0.35	4.51	89.9
	440	600							91.9
	344	450	1300	952		0.0248	0.58		88.1
	80	500							89.5
	270	360	1200	768		0.03821	0.82	6.11	86
	300	400							87.5
	208	270	900	611		0.0659	1.5	5.89	82.8
	230	300							84
42 42 Z4-400- 41 41	435	540	1300	1175	7100	0.0134	0.32	5.54	90.8	94	5300
	480	600							92
	390	450	1400	1070		0.0201	0.47	6.86	88.6
	430	500							90
	316	360	1200	880		0.0274	0.73	5.41	97.7
	350	400							89
	235	270	900	676		0.0508	1.2	5.38	84
	260	300							85.4
22 22 Z4-450- 22 21	472	540	1200	1286	6500	0.0133	0.29	10.2	90.8	138	5600
	520	600							92.1
	08	450	1400	1114		0.0159	0.41	7.99	90
	450	500							91.3
	362	360	1200	1010		0.0232	0.61	5.79	88.1
	400	400							89.4
	253	270	900	720		0.0415		5.82	85.8
	280	300							87.1
32 32 Z4-450-32 32 31	00	540 600	1200	385	7100	0.0134	0.39	19.6	90.8	156	6000
	550								92
	453	450 500	1300	1228		0.0145	0.32	7.36	90
	500								91.4
	408	360	1200	1130		0.0208	0.53	7.17	88.5
	450								89.7
	09	270 300	900	875		0.0342	0.83	4.8	85.9
	340								87.1
	200	180 200	600	595		0.0751	1.9	9.09	81.3
	220								82.6
42 42 Z4-450-42 42 41	545	540	1100	492	7800	0.0134	0.51	28.2	90.3	174	6700
	00								91.5
	500	450 500	1100	1367		0.0145	0.43	18.6	90
	550								91.4
	453	360 400	1200	1254		0.0178	0.42	5.85	88.9
	500								90
	345	270 300	900	972		0.0 75	0.81	5.62	86.8
	380								88.1
	235 180 200		600	698		0.0612	1.7	5.73
	260								87.1
									83

Horizontal,Foot-mounted Data Table

Type	Mounting Dimensions																Outine Dimensions
	A	B	C	D	E	F	CA	DA	EA	FA	GC	H	K	AB	AC	AD	HD	L	L1	h1
Z4-100-1		318	63	24	50	8	27	24	50		27	100	12	197	234	197	398	500	580	10
Z4-100-2	160	358																540	620
Z4-1122-1	190	337	70	28	60	8	31	28	60	8	31	112	12	221	255	202	452	544	612	10
Z4-112/2-2		367																574	642
Z4-1122-3		407																614	682
Z4-112/2-4		477																684	752
Z4-1124-1	190	347	70	32	80	10	35	32	80	10	35	112	12	221	255	202	452	573	642	10
Z4-112/4-2		387																613	682
Z4-1124-3		437																663	732
Z4-1124-4		497																723	792
Z4-132-1	216	355	89	38	80	10	41	38	80	10	41	132	12	260	295	240	527	619	814	12
Z4-132-2		405																669	964
Z4-132-3		465																729	924
74-132-		545																809	004
Z4-160-11	254	411	108	48	110	14	51.5	48	110	14	51.5	160	15	316	346	283	625	744	953	14
Z4-160-12		476																809	986
Z4-160-21		451																784	993
Z4-160-22		516																849	026
Z4-160-31		501																834	1043
Z4-160-32		566																899	076
74-160-4		561																894	103
Z4-160-42		626																959	136
Z4-160-51		631																964	173
Z4-160-52		696																1029	1206
Z4-180-11	279	436	12	55	110	16	59	55	110	16	59	180	15	356	390	305	731	794	022	16
Z4-180-12		50																859	1087
Z4-180-21		476																834	062
Z4-180-22		541																899	127
Z4-180-31		526																884	112
Z4-180-32		591																949	1177
Z4-180-41		586																944	1172
Z4-180-42		651																1009	1237
Z4-180-51		656																1014	1242
Z4-180-52		721																1079	1307
Z4-200-11	318	566	133	65	140	18	69	65	140	18	69	200	19	396	430	355	779	977	1158	18
Z4-200-12		614																1025	1206
Z4-200-21		606																1017	1198
Z4-200-22		654																1065	1246
Z4-200-31		686																1099	1278
Z4-200-32		734																1145	1326
Z4-200-41		756																1167	1348
Z4-200-42		804																1215	1396
Z4-225-11	356	701	149	75	140	20	79.5	75	140	20	79.5	225	19	440	474	398	981	1140	1605	20
																		1200	1665
Z4-225-12		761																1190	1655
Z4-225-21		751																1250	1715
Z4-225-22		811																1250	1715
Z4-225-31		811
Z4-225-32		871																1310	1775
Z4-250-11	4068	715	68	85	170	22	90	75	140	20	79.5	250	24	490	524	432	103	1225	1657	25
Z4-250-12		775																1285	1717
Z4-250-21		765																1275	1707
Z4-250-22		825																1335	1767
Z4-250-31		25																1335	1767
Z4-250-32		885																1395	1827
Z4-250-41		895																1405	1837
Z4-250-42		955																1465	1897
Z4-280-11	457	762	190	95	70	25	00	85	170	22	90	280	24	550	58	446	2113	1375	1748	25
Z4-280-12		852																1405	1838
Z4-280-21		822																1375	1803
Z4-280-22		912																1465	1898
Z4-280-31		892																1445	1878
Z4-280-32		982																1535	1968
Z4-280-41		972																1525	1958
Z4-280-42		1062																1615	2048
Z4-280-51		1062																1615	2048
Z4-280-52		1152																1705	2138
Z4-315-091	508	817	216	100	210	28	06	95	170	25	00	315	28	620	654	497	122	1462	1827	30
Z4-315-092		907																1552	1917
Z4-315-11		887																1532	1897
Z4-315-12		977																1622	1987
Z4-315-2		967																1612	1977
Z4-315-22		1057																1702	2067
Z4-315-31		057																1702	2067
Z4-315-32		1147
Z4-315-41		157																1792	2157
Z4-315-42		1247																1802	2067
Z4-355-081	610	818	254	110	210	28	16	110	210	28	16	355	28	700	734	701	301	1539	1860	30
Z4-355-082		908																1629	1956
Z4-355-091		888																1069	1930
Z4-355-092		978																1699	2020
Z4-355-11		968																1689	2010
Z4-355-12		1058																1779	2100
Z4-355-21		1058																1779	2100
Z4-355-22		1148																1869	2190
Z4-355-31		1158																1879	2200
Z4-355-32		1248																1969	2290
Z4-355-41		1268																1989	2310
Z4-355-42		1358																2079	2400
Z4-400-11	686	959	280	120	210	32	127	120	210	32	127	400	35	790	830	750	620	1732	1817	35
Z4-400-12		1079																1852	1937
Z4-400-21		039																1812	1897
Z4-400-22		1159																1932	2017
Z4-400-31		1129																1902	1987
Z4-400-32		1249																2022	2107
Z4-400-41		1229																2002	2087
Z4-400-42		1349																2122	2207
Z4-450-11	800	106	315	140	250	36	148	140	250	36	48	450	35	890	924	800	1720	1944	2050	40
Z4-450-12		1181																2064	2070
Z4-450-21		1151																2034	2140
Z4-450-22		127																2154	2260
Z4-450-31		1251																2134	2240
Z4-450-32		137		160	300	40	169											2254	2360
Z4-450-41		136																2294	2350
Z4-450-42		148																2414	2470
Z4-450-51		148																2414	2470
Z4-450-52		1601																2534	2590

Vertical.Foot-mounted Data Table

Type	Mounting Dimensions																		Outine Dimensions
	A	B	c	D	E	F	GA	DA	EA	FA	GC	H	K	M	N	S	rom	T	P	AB	AC	AD	HD	L	L1
Z4-100-1	60	318	63	24	50	8	27	24	50	8	27	00	12	215	180	15	4	4	250	197	234	179	398	500	580
Z4-100-2		358																						540	620
Z4-1122-1	90	337	70	28	60	8	3	28	60	8	31	12	12	215	180	15	4	4	250	22	255	202	452	544	612
Z4-1122-2		367																						574	642
Z4-1122-3		407																						614	682
Z4-112/2-4		477																						684	752
Z4-112/4-1	190	347	70	32	80	10	35	32	80	10	35	112	12	215	180	15	4	4	250	22	255	202	452	573	942
Z4-112/4-2		387																						613	682
Z4-1124-3		437																						663	732
Z4-11214-4		497																						723	792
Z4-132-1	216	355	89	38	80	10	41	38	80	10	41	32	12	265	230	15	4	4	300	260	295	240	527	619	814
Z4-132-2 -		405																						669	864
Z4-132-3		465																						729	924
Z4-132-4		545																						809	004
Z4-160-11	254	411	08	48	110	14	51.5	48	110	14	51.5	60	15	300	250	19	4	5	350	316	346	283	625	744	953
Z4-160-12		476																						809	986
Z4-160-21		45																						784	993
Z4-160-22		516																						849	026
Z4-160-31		501																						834	1043
Z4-160-32		566																						899	076
Z4-160-41		56																						894	1103
Z4-160-42		626																						959	136
Z4-160-51		63																						964	1173
Z4-160-52		696																						1029	1206
24-180-11	279	436	12	55	110	16	59	55	110	16	59	180	15	350	300	19	4	5	400	356	390	304	731	794	022
Z4-180-12		50																						859	087
Z4-180-21		476																						834	1062
Z4-180-22		54																						899	1127
Z4-180-31		526																						884	1112
Z4-180-32		591																						949	1177
Z4-180-41		586																						944	1172
Z4-180-42		651																						1009	1237
Z4-180-51		656																						014	1242
Z4-180-52		721																						079	1307
Z4-200-11	318-	566	133	65	40	18	69	65	140	18	69	200	19	400	350	19	8	5	450	396	430	355	779	977	1158
Z4-200-12		614																						1025	1206
Z4-200-21		606																						1017	1198
Z4-200-22		654																						1065	1246
Z4-200-31		686 -																						1097	1278
Z4-200-32		734																						1145	1326
Z4-200-41		756																						1167	1348
Z4-200-42		804																						1215	1396
Z4-225-11	356	701	49	75	40	20	705	75	40	20	705	225	10	500	450	.19	8	5	55	440	474	398	981	1140	1605
Z4-225-12		76																						1200	1665
Z4-225-21		751																						190	1655
Z4-225-22		811																						1250	1715
Z4-225-31		81																						1350	1715
Z4-225-32		871																						1310	1775
Z4-250-11	406	715	168	85	170	22	90	75	140	20	79.5	250	24	600	550	24	8	6	660	490	524	432	031	1225	1657
Z4-250-12		775																						1285	1717
Z4-250-21		765																						1275	1707
Z4-250-22		825																						1335	1767
Z4-250-31		825																						1335	1767
Z4-250-32		885																						1395	1827
Z4-250-41		895																						1405	1837
Z4-250-42		955																						1465	1897
Z4-280-11	457	762	190	95	170	25	00	85	170	22	90	280	24	600	550	24	8	6	660	550	584	462	130	1375	1748
Z4-280-12		852																						1405	1838
Z4-280-21		822																						1375	1808
Z4-280-22		912																						1465	1898
Z4-280-31		892																						1445	1878
Z4-280-32		982																						1535	1968
Z4-280-41		972																						1525	1958
Z4-280-42		062																						1615	2048
Z4-280-51		062																						1615	2048
Z4-280-50		1152																						1705	2138
Z4-315-11	508	887	216	100	210	28	06	95	170	25	100	315	28	740	680	24	8	6	800	620	654	A97	1221	1532	1897
Z4-315-1		977																						1622	1987
Z4-315-21		967																						1612	1977
Z4-315-22		1057																						702	2067
Z4-315-31		1057																						1702	2067
Z4-315-32		147																						1792	2157
Z4-315-41		1157																						1802	2067
Z4-315-42		1247																						1892	2257

Special Specification Techical Date of Some Z4 Motor

TYPE	Rated Output	Rated Volytage	Rated Spoed	Fiold Weakened	Arm. Curr.	Field Power	Arm. Circuit Resistance	Arm. Circuit Resistance	Field Lnductance	Efficiency	Moment of Inertia
TYPE	PN KW	US V	NS R/MIIN	NF R/MIN	LN A	PF W	R Ω(20℃)	LA MH	LF H	Eff. %	GD kg.m²
Z4-250-41B	65	400	500	2000	200	300	0.2115	2.8	7.02	80.7	7.0
Z4-280-21B	100	400	600	3000	306	3500	0.1156	1.1	5.15	83.7	11.2
Z4-280-41B	110	440	500	2000	295	4000	0.0124	1.6	3.88	38.8	14.4
Z4-315-092	375	500	1750	1900	800	3700	0.0149	0.31	21.2	93.2	18.4
Z4-315-12	444	460	1770	1800	1023	3850	0.0099	0.17	10.6	93.7	21.2
Z4-315-21	150	500	500	1700	343	4350	0.0983	1.7	20.6	87	24
Z4-315-22	230	220	705	1700	1177	4350	0.0105	0.21	1.91	88.3	24
Z4-355-082	500	460	1470	1500	1157	4200	0.0101	0.17	8.56	83.2	37
Z4-355-32	520	520	850	900	1075	6000	0.0159	0.36	7.37	92.4	52
Z4-355-32	500	660	1000	1500	810	6000	0.0217	0.49	5.6	92.9	52
Z4-355-42	567	520	825	900	1165	6500	0.0146	0.37	8.37	92.7	60
Z4-400-12	600	500	1150	1600	128	5200	0.0098	0.17	16.1	93.1	66
Z4-400-22	400	520	660	1300	845	6000	0.0295	0.63	7.1	91.4	74
Z4-400-32	618	550	850	900	1200	6400	0.0128	0.33	18.2	93	84
Z4-400-42	400	520	500	1200	840	7100	0.026	0.77	10.4	92	94
Z4-400-42	500	660	600	1200	824	7100	0.0344	0.89	7.73	91.1	94
Z4-400-42	700	520	800	900	1445	7100	0.0115	0.29	14.8	92.4	94
Z4 -450-12	600	660	750	1000	980	5100	0.020	0.55	9.44	92.5	122
Z4-450-21	326	660	500	1500	545	6500	0.0517	1.1	14.9	91.2	138
Z4-450-22	400	520	400	900	860	6500	0.038	0.98	15	90	138
Z4-450-22	500	520	500	1000	1000	6500	0.023	0.64	11.7	91.2	138
Z4-450-22	600	520	600	1200	1250	6500	0.016	0.42	12	92.7	138
Z4-450-22	700	600	750	1000	1240	6500	0.0133	0.38	8.75	93	138
Z4-450-32	480	520	400	900	1030	7500	0.0305	0.77	10.6	90.1	156
Z4-450-32	600	520	500	1000	1255	7500	0.0177	0.55	5.19	92	156
Z4-450-32	700	520	600	1000	1460	7500	0.0134	0.33	8.22	92.3	156
Z4-450-42	570	520	400	900	220	7800	0.022	0.51	4.5	90.1	174
Z4-450-42	700	520	500	1000	1450	7800	0.0142	0.44	7.6	92	174
Z4-450-42	750	660	600	900	1215	7800	0.0181	0.58	9.37	92.5	174
Z4 -450-51	800	660	500	1000	1310	8600	0.0202	0.66	6.99	92	196
