Electromagnetic Motors Manufactor- High Torque & High Efficiency

Immerse in the power of precision with our Electromagnetic Motor, a game-changer in efficiency and control. Built to harness electromagnetic forces, it offers unparalleled responsiveness and low-maintenance operations. Ideal for applications demanding meticulous speed regulation and torque control, this motor is a cornerstone of innovation—quiet, robust, and energy-efficient. Revolutionize your equipment with our state-of-the-art electromagnetic solutions.

YEJ series electromagnetic brake three-phase asynchronous motor

● 1.Overview

The YEJ series electromagnetic brake three-phase asynchronous motor is an important product carefully developed by Huanian Motor Company to solve the problems of slow braking speed and poor working safety of ordinary motors. This series of motors adopts an innovative design concept. By organically combining key components such as Y series motors, disc-type DC electromagnetic brakes, and rectifier power supplies, it has achieved a significant improvement in braking performance and provided users with a more reliable and efficient solution.

The structural design of our YEJ series motors is very reasonable. By organically combining Y series motors, including Y2, YVP, YD derived Y2EJ, YVPEJ, YDEJ series motors, and key components such as disc-type DC electromagnetic brakes and rectifier power supplies, the stability and reliability of the entire motor system are ensured. This reasonable structural design not only ensures the normal operation of the motor, but also greatly improves its braking performance and safety.

Outstanding braking performance and rapid braking. According to different braking methods, YEJ series motors can be divided into two types: power-off braking and power-on braking. Power-off braking can automatically start in the event of a power outage and quickly brake the motor, ensuring the safety of equipment and personnel. Power-on braking can be achieved through an external control system, making the braking process more precise and controllable, meeting the use requirements under different process requirements.

The insulation level is B (F and H levels are also optional), the protection level is IP44, and the power level and installation size are in line with IEC and DIN standards. This means that this series of motors not only meets international standards in terms of performance, but also has a high level of security in terms of safety and reliability. Users can rest assured to choose and use YEJ series motors to meet the needs of various industrial production scenarios.

Our YEJ series electromagnetic brake three-phase asynchronous motor has become an ideal choice for solving the problems of slow braking speed and poor working safety of ordinary motors due to its reasonable structure, rapid braking, reliable operation, and convenient maintenance. Its emergence has provided strong support for industrial production and promoted the continuous improvement of industrial automation level.

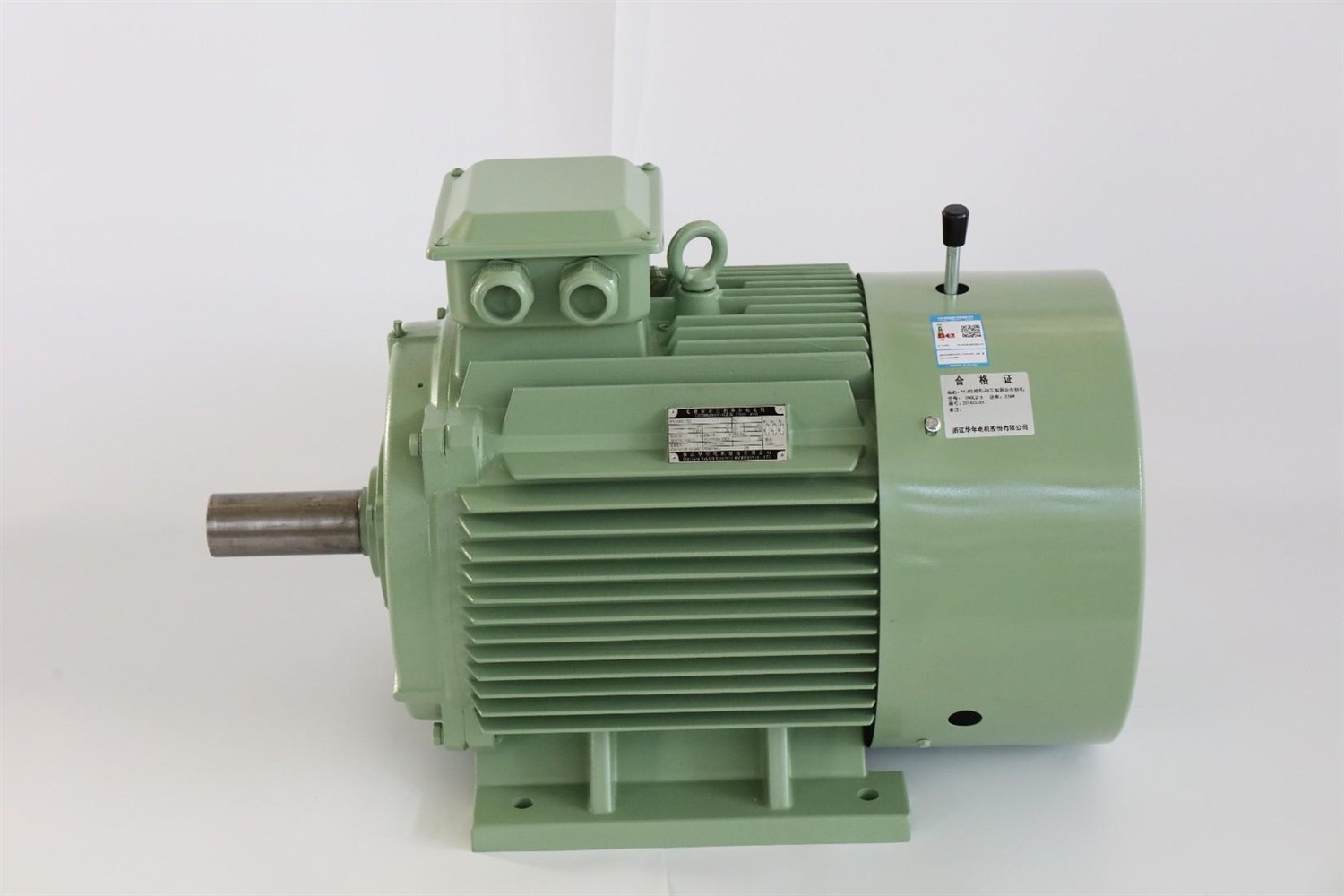

productcate-1650-1100

productcate-1499-815

Features

（1）Disc-type DC electromagnetic brake:

YEJ series motors use disc-type DC electromagnetic brakes as braking devices. This type of brake has the characteristics of rapid braking, and can generate sufficient braking force in a short time to quickly stop the rotation of the motor.

（2）Fast braking:

The characteristics of the disc-type DC electromagnetic brake ensure that the YEJ series motor can brake quickly in the event of a power outage or other emergency. It can respond quickly to braking commands and stop the motor within a few seconds, effectively improving the safety and stability of the equipment.

（3）Reliability guarantee:

The braking performance of the disc-type DC electromagnetic brake is stable and reliable. After long-term practical application verification, the reliability and stability of the braking performance of the YEJ series motor during operation are ensured.

Product advantages

（1）Reasonable structure:

YEJ series motors adopt reasonable structural design, and each component is organically combined to ensure the stability and reliability of the overall performance. This reasonable structural design makes the motor more convenient to install and maintain, and improves the use efficiency.

（2）Highly reliable:

Using high-quality materials and advanced manufacturing technology, YEJ series motors are highly reliable. They undergo strict quality control and testing, and can operate stably in harsh environments, ensuring the continued stability and reliability of the equipment

（3）Flexible selection:

According to user needs, YEJ series motors can choose different models of Y series motors, including Y2, YVP, YD derived Y2EJ, YVPEJ, YDEJ series motors. This flexible selection allows users to choose the appropriate power and speed according to actual needs to meet the requirements of different industrial application scenarios.

（4）High safety:

YEJ series motors are highly safe. Its IP44 protection level effectively prevents the intrusion of water and solid matter, thus ensuring the safe operation of the equipment. The IP44 protection level means that the motor can effectively resist the intrusion of solid matter with a diameter greater than 1 mm and water droplets under normal working conditions, providing a reliable guarantee for the long-term stable operation of the equipment.

（5）Strong versatility:

YEJ series motors comply with IEC (International Electrotechnical Commission) and DIN (German Industrial Standard) standards, which makes them highly versatile in terms of power levels and installation dimensions. Compliance with these international standards means that YEJ series motors can be widely recognized and used around the world. In addition, the strong versatility of power levels and installation dimensions makes YEJ series motors suitable for various industrial occasions, and can provide stable and reliable power support for both light and heavy equipment.

Application Scenario

（1）Lifting equipment:

YEJ series electromagnetic brake motors are often used in lifting equipment, such as cranes, bridge cranes, gantry cranes, etc. These equipment require frequent start and stop and precise control during operation, and electromagnetic brake motors can brake quickly and maintain a stable position.

（2）Machine tool equipment:

In CNC machine tools, lathes, milling machines and other machine tool equipment, YEJ series electromagnetic brake motors are often used to drive the spindle or feed system. When the machine tool needs to stop urgently or change the tool, the electromagnetic brake motor can brake quickly, improving the safety and work efficiency of the equipment.

（3）Winding equipment:

In winding equipment, such as winding machines, stretching machines, cigarette making machines, etc., YEJ series electromagnetic brake motors are often used to wind and stretch materials. By controlling the electromagnetic brake, the winding speed and tension can be accurately controlled to ensure product quality and production efficiency.

（4）Conveying equipment:

In conveying equipment, such as belt conveyors, chain conveyors, etc., YEJ series electromagnetic brake motors are often used to drive the conveying system. When it is necessary to stop or adjust the conveying speed, the electromagnetic brake can quickly brake the motor to ensure the stable operation of the conveying system.

（5）Fan and pump equipment:

YEJ series electromagnetic brake motors are also used in fans and pump equipment that need to be started and stopped frequently. By controlling the electromagnetic brake, the equipment can be stopped quickly to achieve energy saving and safe production.

Technical Parameters

(1) Rated Power:

Usually between tens of watts and several kilowatts, depending on the model and specifications of the motor.

(2) Rated Voltage:

Usually three-phase voltage, such as 380V, 400V, 415V, etc., and can also be customized according to customer requirements.

(3) Rated Speed:

Usually between several hundred rpm and several thousand rpm, and can also be customized according to actual needs.

(4) Rated Frequency:

Usually 50Hz or 60Hz, depending on the power grid standards of different countries and regions.

(4) Insulation Class:

Usually F or H, indicating the withstand voltage level of the motor insulation material.

(6) Brake Voltage:

Indicates the working voltage of the brake, which is usually the same as or slightly different from the rated voltage of the motor.

(7) Brake Power:

Indicates the braking power of the brake, which is usually a certain proportion of the rated power of the motor.

(8) Brake Type:

Usually there are two types of DC brakes and AC brakes, which can be selected according to different needs.

Electromagnetism Electric Motor
Electromagnetism motor is a common type

YEJ Technical Parameters
Frame Size	H80-355	Rated Voltage	380V~690V
=Frequency	50Hz、60Hz	Output Range	0.55kW~355kW
Insulation	B、F、H	Protection Class	IP44、IP54
Connection	≤3kW Y，>3kW△	Duty	S1
Altitude	≯1000m	Ambient Temperature	-15℃~+40℃
Voltage of power-off brake		≤H100 DC99V,>H100 DC170V
Voltage of power brake		DC24V power supply(not included）

YEJ Series Parameters

Frame size	80	90	100	112	132	160	180	200	225	250	280	315
Type	8	15	30	40	80	150	200	300	300	450	850	2000
Excitation power(W)	50	60	80	110	130	150	150	200	200	210	210	400
Excitation voltage(V)	99	99	99	170	170	170	170	170	170	170	170	170
Type	2.5	2.5	5	10	16	25
Excitation power(W)	20	20	26	38.5	47	50
The motor has a brake power rectifier inside and is connected to the main power supply. It can be connected normally when in use. The brake power supply (usually DC24V) and control part are prepared by the user.

Structure and installation dimensions
Frame size	80 M	90 S	90 L	100 L	112 M	132 S	132 M	160 M	160 L	180 M	180 L	200 L	225 S	225	250 M	280 S	280 M	315 S	315 M	315 L
Overall length	390	420	445	480	510	585	625	720	765	825	875	900	1000	1030	1085	1145	1200	1310	1480

6 poles Synchronous speed 1000r/min				8 poles Synchronous speed 750r/min
Frame size	rated current A	Static braking torque N.m	No-load braking time S	Power	rated current A	Static braking torque N.m	No-load braking time S
90S	2.3	14.7	0.25
90L	3.2	14.7	0.25
100L	4	29.4	0.3
112M	5.6	39.2	0.35	132S	5.8	75	0.4
132S	72	73.6	0.4	132M	7.7	75	0.4
132M1	94	73.6	0.4	160M1	9.9	150	0.5
132M2	12.6	147.2	0.4	160M2	13.3	150	0.5
160M	17	147.2	0.5	160L	17.7	150	0.5
160L	24.6	147.2	0.5	180L	25.1	200	0.6
180L	31.5	215.8	0.6	200L	34.1	300	0.7
200L1	37.7	294.3	0.7	225S	41.3	450	0.8
200L2	44.6	294.3	0.7	225M	47.3	450	0.8
225M	59.5	441.5	0.8	250M	63	600	0.9
250M	72	600	0.9	280S	78.8	850	1
280S	85.4	850	1	280M	93.2	850	1
280M	104.9	850	1	315S	114	2000	1.2
315S	152.1	2000	1.2	315M	152.1	2000	1.2
315M	168.1	2000	1.2	315L1	179.3	2000	1.2
315L1	204.4	2000	1.2	315L2	218.5	2000	1.2

Power	2-pole synchronous speed 3000r/min				4-pole synchronous speed 1500r/min
Power	Frame size	rated current A	Static braking torque N.m	No-load braking time S	Frame size	rated current A	Static braking torque N.m	No-load braking timeS
055					80M1	1.5	7.36	0.2
0.75	BOM1	1.8	7.36	0.2	80M2	2	7.36	0.2
1.1	B0M2	2.5	7.36	0.2	90S	2.7	14.7	0.25
1.5	90S	3.4	14.7	0.25	90L	3.7	14.7	0.25
2	90L	4.7	14.7	0.25	100L1	5	29.4	0.3
3	100L	6.4	29.4	0.3	100L2	6.8	29.4	0.3
4	112M	8.2	39.2	0.35	112M	8.8	39.2	0.35
5.5	132S1	11.1	73.6	0.4	132S	11.6	73.6	0.4
7.5	132S2	15	73.6	0.4	132M	15.4	73.6	0.4
11	160M1	21.8	147.2	0.5	160M	22.6	147.2	0.5
15	160M2	29.4	147.2	0.5	160L	30.3	147.2	0.5
18.5	160L	35.5	147.2	0.5	180M	35.9	215.8	0.6
22	180M	42.2	215.8	0.6	180L	42.5	215.8	0.6
30	200L1	57	2943	0.7	200L	56.8	294.3	0.7
37	200L2	69.8	294.3	0.7	225S	70.4	441.5	0.8
45	225M	83.9	441.5	0.8	225M	84.2	441.5	0.8
55	250M	1027	600	0.9	250M	102.5	600	0.9
75	2805	140.1	B50	1	280S	139.7	850	1
90	280M	167	B50	1	280M	164.3	850	1
110	315S	203	2000	1.2	315S	200.8	2000	1.2
132	315M	2423	2000	1.2	315M	239.7	2000	1.2
160	315L1	292.1	2000	1.2	315L1	189.1	2000	1.2
200	315L2	365	2000	1.2	315L2	362	2000	1.2

Technical parameters
Frame size	H80-355	Rated voltage	380V-690V
Frequency	50Hz、60Hz	Output range	0.55kW~355kW
Insulation grade	B、F、H	Protection level	IP44、IP54
Connection method	≤3KW Y,>3KW△	Duty	S1
Altitude	≯1000m	Ambient temperature	-15℃~+40℃
Power-off braking voltage		≤H100 DC99V,>H100 DC170W
Power-on braking voltage		DC24V power supply (not included)

Motor structure and installation dimensions

(1) Structural composition:

Frame: Usually made of cast iron or aluminum alloy, used to fix and support the internal components of the motor and provide protection.

Stator: As the static part of the motor, it includes stator winding and stator core.

Rotor: As the rotating part of the motor, the rotor winding is usually squirrel cage type or winding type.

Shaft: The shaft used to connect the rotor and output power.

Bearings: Installed at both ends of the motor to support the rotation of the shaft.

Brake: The electromagnetic brake is usually installed on the end cover of the motor to achieve rapid braking or stopping functions.

(2) Installation dimensions:

The installation dimensions include the size of the mounting base, the location and size of the mounting holes, and the location and length of the shaft.

Generally speaking, the installation dimensions of the YEJ series electromagnetic brake three-phase asynchronous motor should comply with international standards, such as IEC standards or national standards, to ensure coordination with other equipment.

The installation dimensions can usually be found in the product's technical parameter table or product manual. Users should carefully review and refer to these dimensions when purchasing and installing.

Installation method:

Structure and installation type (IM code)）	IM B3	IM B8	IM B5	IM B6	IM V5	IM V1	IM B7	IM V6	IM V3
Installation diagram
Frame size	63-450	63-160	63-280	63-160	63-160	63-450	63-160	63-160	63-160
Structure and installation type (IM code)）	IM V37	IM V17	IM B34	IM V19	IM V18	IM B14	IM V35	IM V15	IM B35
Installation diagram
Frame size	63-132	63-13	63-132	63-132	63-132	63-132	63-160	63-160	63-450

Service promise

(1) Quick response:

We guarantee to take immediate action after customers raise inquiries or questions to ensure timely and effective problem solving and provide immediate feedback to meet customer needs.

(2) Quality assurance:

We always put product quality first and ensure that each YVP series motor meets high standards of quality through strict quality control and testing processes to meet customer expectations and trust.

(3) Customer satisfaction:

We are committed to providing high-quality services and products to ensure customer satisfaction. We actively listen to customer feedback and suggestions, continuously improve and optimize our products and services to meet customers' changing needs and establish long-term and stable cooperative relationships.

We're professional electromagnetic motor manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to wholesale high purity electromagnetic motor from our factory.
