TY and TYF series permanent magnet synchronous motors use high-efficiency NdFeB permanent magnets in the rotor, with no excitation loss. The rotor structure has been optimized to greatly reduce the iron loss and stray loss of the motor. The overall efficiency meets the IE4 efficiency level of GB/T 32891.1-2016 "Efficiency Classification of Rotating Motors (IE Code) Part 1: AC Motors Powered by the Grid", and reaches the 1st energy efficiency level of GB 30253-
2013 "Energy Efficiency Limit Values ​​and Energy Efficiency Levels of Permanent Magnet Synchronous Motors".


The main features of the product are:
1. High efficiency and energy saving, using high-quality rare earth permanent magnets, optimized stator slots and rotor structures, the motor efficiency reaches IE4 energy efficiency level.
2. Small and light, small motor size, high power density, 1 to 2 frame sizes smaller than asynchronous motors of the same power.
3. High reliability, high power factor (COsφ) and efficiency, small current, low temperature rise, high motor reliability and long life.
4. High performance, small moment of inertia, large torque, strong overload capacity, wide operating frequency range, and fast speed response when variable frequency speed regulation.
5. Convenient control, using frequency converter vector control method, high control accuracy.
6. Strong adaptability, suitable for various harsh environments, can run at low speed, overspeed for a long time and start frequently.

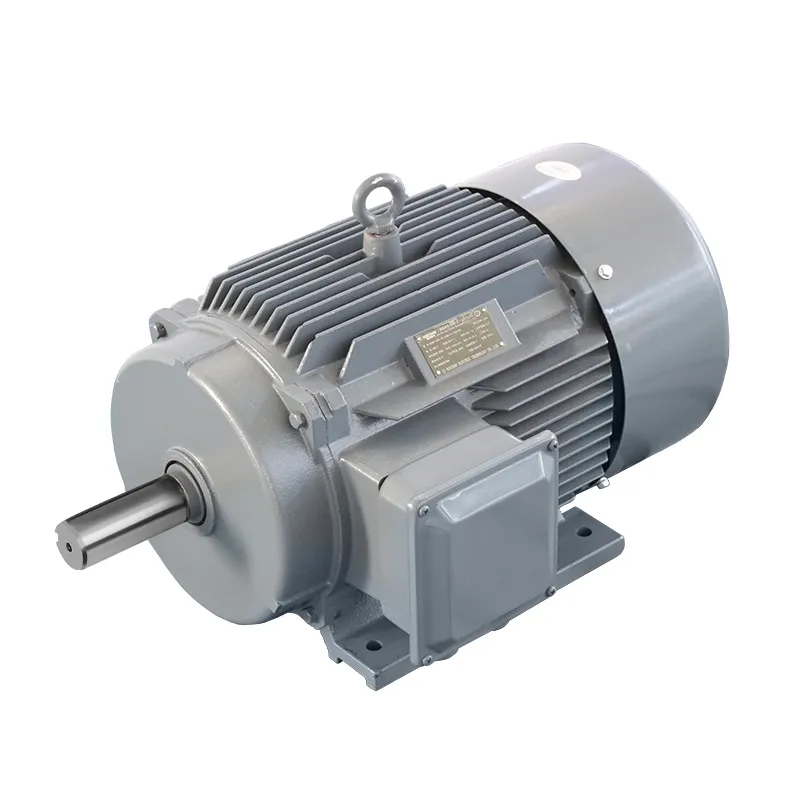

page-800-800
page-800-800
page-800-800
page-800-800
page-800-800
page-800-800
page-800-800
page-800-800



Ordering instructions



When ordering, please indicate themotor type, pole number, rated power, rated voltage, rated frequency, protection grade, cooling method, mounting type, terminal box type, altitude, and environment temperature; If you have other technical requirements besides the national standards on the motor, our company will design specifically for you, and put into production after signing the technical agreement.

2



Technical data
TY permanent magnet synchronous motor
High efficiency Meets GB30253-1 energy efficiency Working system S1
Installation dimensions and tolerances Meets IEC standards Control mode Variable frequency vector control
Power range 7.5~160kW Insulation level F
Protection level IP54 (IP23 can be customized) Cooling method IC411 (fan self-cooling)
Speed ​​range Constant torque: 0~3000r/min Optional accessories Encoder, rotary transformer, PTC, PT100
Weak magnetic field: 3000~3600r/min Lead wire Standard length 1.2 meters (customizable according to user requirements)
Installation method IMB3 IMB5 IMB35 Service factor SF Standard 1.2 (customizable according to requirements)
Operating environment Below 1000 meters above sea level
Temperature -15~45℃
Relative humidity below 90%



TY permanent magnet synchronous motor parameters
Type Power
(kW)
Rated voltage
(V)
Rated current
(A)
Frequency
(Hz)
Pole Rated speed
(r/min)
Rated torque
(N.m)
Efficiency
(%)
Weight
(kg)
TY-132M1-4 7.5 380 14.6 100 4 3000 23.9 92.1 71
TY-132M2-4 11 380 21.1 100 4 3000 35 93.0 87
TY-160M1-4 15 380 28.7 100 4 3000 47.8 93.4 118
TY-160M2-4 22 380 41.7 100 4 3000 70 94.4 126
TY-180M1-4 30 380 56.7 100 4 3000 95.5 94.5 175
TY-180M2-4 37 380 69.8 100 4 3000 117.8 94.8 186
TY-200L1-4 45 380 84.6 100 4 3000 142.3 95.1 241
TY-200L2-4 55 380 103.1 100 4 3000 175 95.4 159
TY-225M-4 75 380 141.0 100 4 3000 238.8 95.6 388
TY-225MX-4 90 380 168.7 100 4 3000 286.5 95.8 421
TY-280S1-8 110 380 205.7 200 8 3000 350 96.0 486
TY-280S2-8 132 380 246.9 200 8 3000 420 96.0 534
TY-280M-8 160 380 398.6 200 8 3000 509 96.2 698



TYF permanent magnet synchronous motor
High efficiency Meets GB30253-1 energy efficiency Working system SI
Installation dimensions and tolerances Meets IEC standards Control mode Variable frequency vector control
Power Range 7.5~250kW Insulation level F
Protection level IP54 (IP23 can be customized) Cooling method IC416 (independent axial fan cooling)
Speed ​​range Constant torque: 0~1500r/min Optional accessories Encoder, rotary transformer, PTC, PT100
Weak magnetic: 1500-1800r/min Lead wire Standard length 1.2 meters (customizable according to user requirements)
Installation method IMB3 IMB5 IMB35 Service factor SF Standard 1.2 (customizable according to requirements)
Usage environment Below 1000 meters above sea level
Temperature -15~45℃
Relative humidity below 90%



TYF permanent magnet synchronous motor parameters
Type Power
(kW)
Rated voltage
(V)
Rated current
(A)
Frequency
(Hz)
Pole Rated speed
(r/min)
Rated torque
(N.m)
Efficiency
(%)
Weight
(kg)
TYF-132M1-6 7.5 380 14.5 75 6 1500 47.8 92.6 61
TYF-132M2-6 11 380 21.0 75 6 1500 70 93.6 73
TYF-160M1-6 11 380 21.0 75 6 1500 70 93.6 108
TYF-160M2-6 15 380 28.5 75 6 1500 95.5 94.0 124
TYF-160L1-6 18.5 380 35.1 75 6 1500 117.8 94.3 132
TYF-160L2-6 22 380 41.5 75 6 1500 140 94.7 141
TYF-225S1-8 30 380 56.4 100 8 1500 191 95.0 261
TYF-225S2-8 37 380 69.4 100 8 1500 235.6 95.3 274
TYF-225M1-8 45 380 84.1 100 8 1500 286.5 95.6 284
TYF-225M2-8 55 380 102.6 100 8 1500 350 95.8 297
TYF-225MX-8 75 380 141.7 100 8 1500 477.5 96.0 336
TYF-280S-8 90 380 169.7 100 8 1500 573 96.2 484
TYF-280M1-8 110 380 207 100 8 1500 700 96.4 512
TYF-280M2-8 132 380 248.1 100 8 1500 840 96.5 555
TYF-315S-8 160 380 300.8 100 8 1500 1018.7 96.5 756
TYF-315M-8 200 380 375.6 100 8 1500 1273.3 96.6 850
TYF-315L1-8 220 380 413.2 100 8 1500 1400.7 96.6 910
TYF-315L2-8 250 380 469.1 100 8 1500 1591.7 96.7 1055

page-921-258

IMB3 Installation           Electric motor with base and no flange on end cover          Unit: mm
Frame Installation dimensions and tolerances Dimensions
A B C D E F G H K AA AB AC AD BB BC HD HA L
132M 216 178 89 38 80 10 33 132 12 55 270 275 210 270 23 340 18 560
160M 254 210 108 42 110 12 37 160 14.5 65 320 330 255 304 25 410 20 670
160L 254 254 108 42 110 12 37 160 14.5 65 320 330 255 334 25 410 20 670
180M 279 241 121 48 110 14 42.5 180 14.5 70 355 380 280 353 35 445 22 740
200L 318 305 133 55 110 16 49 200 18.5 70 395 420 305 369 30 500 25 790
225S 356 286 149 60 140 18 53 225 18.5 75 435 470 335 375 45 545 28 830
225M 356 311 149 60 140 18 53 225 18.5 75 435 470 335 400 45 545 28 855
225MX 356 311 149 60 140 18 53 225 18.5 75 435 470 335 440 45 545 28 930
280S 457 368 190 75 140   67.5 280 24 85 550 580 410 490 69 670 40 985
280M 457 419 190 75 140 20 67.5 280 24 85 550 580 410 540 69 670 40 1035
315S 508 406 216 80 170 22 71 315 28 120 635 645 530 570 84 845 45 1290
315M 508 457 216 80 170 22 71 315 28 120 635 645 530 680 84 845 45 1320
315L 508 508 216 80 170 22 71 315 28 120 635 645 530 680 84 845 45 1320



page-930-241

IMB35 Installation Electric motor with base and flange on end cover Unit: mm
Frame Flange Poles Installation dimensions and tolerances Dimensions
A B C D E F G H K M N P R S T Flange hole number AA AB AC AD BB BC HD HA L
132M FF265 2-8 216 178 89 38 80 10 33 132 12 265 230 300 0 14.5 4 4 55 270 275 210 270 23 340 18 560
160M FF300   254 210 108 42 110 12 37 160 14.5 300 250 350 0 18.5 5 4 65 320 330 255 304 25 410 20 670
160L FF300   254 254 108 42 110 12 37 160 14.5 300 250 350 0 18.5 5 4 65 320 330 255 334 25 410 20 700
180M FF300   279 241 121 48 110 14 42.5 180 14.5 300 250 350 0 18.5 5 4 70 355 380 280 353 35 445 22 740
200L FF350   318 305 133 55 110 16 49 200 185 350 300 400 0 18.5 5 4 70 395 420 305 369 30 500 25 790
225S FF400 4-8 356 286 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 8 75 435 470 335 375 45 545 28 830
225M FF400 4-8 356 311 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 8 75 435 470 335 400 45 545 28 855
225MX FF400 4-8 356 311 149 60 140 18 53 225 18.5 400 350 450 0 18.5 5 8 75 435 470 335 440 45 545 28 925
250M FF500 2 406 349 168 65 140 18 58 250 24 500 450 550 0 18.5 5 8 80 490 510 370 450 55 610 30 915
280S FF500 2 457 368 190 75 140 20 67.5 280 24 500 450 550 0 18.5 5 8 85 550 580 410 490 68.5 670 40 985
280M FF500 2 457 419 190 75 140 20 67.5 280 24 500 450 550 0 18.5 5 8 85 550 580 410 540 68.5 670 40 1035
315S FF600 2 508 406 216 80 170 22 71 315 28 600 550 660 0 24.0 6 8 120 635 645 530 570 84 845 45 1210
315M FF600 2 508 457 216 80 170 22 71 315 28 600 550 660 0 24.0 6 8 120 635 645 530 680 84 845 45 1320
315L Ff600 2 508 508 216 80 170 22 71 315 28 600 550 660 0 24.0 6 8 120 635 645 530 680 84 845 45 1320



Installation Method



Structure and installation type
(IM code))
IM B3 IM B8 IM B5 IM B6 IM V5 IM V1 IM B7 IM V6 IM V3
Installation diagram productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Frame size 63-450 63-160 63-280 63-160 63-160 63-450 63-160 63-160 63-160
Structure and installation type
(IM code))
IM V37 IM V17 IM B34 IM V19 IM V18 IM B14 IM V35 IM V15 IM B35
Installation diagram productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Frame size 63-132 63-13 63-132 63-132 63-132 63-132 63-160 63-160 63-450

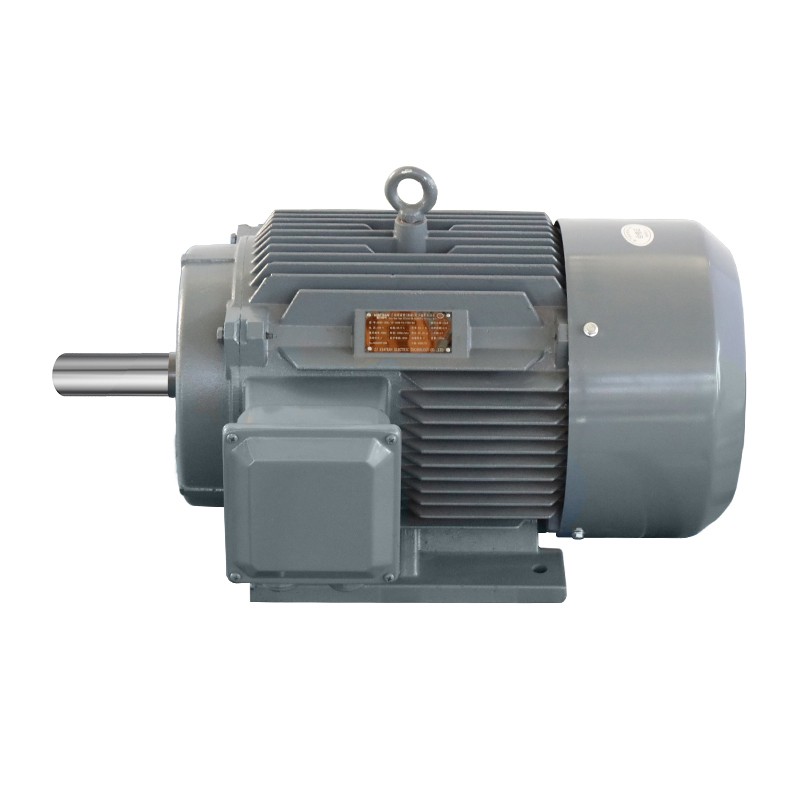

361A6002
361A6003

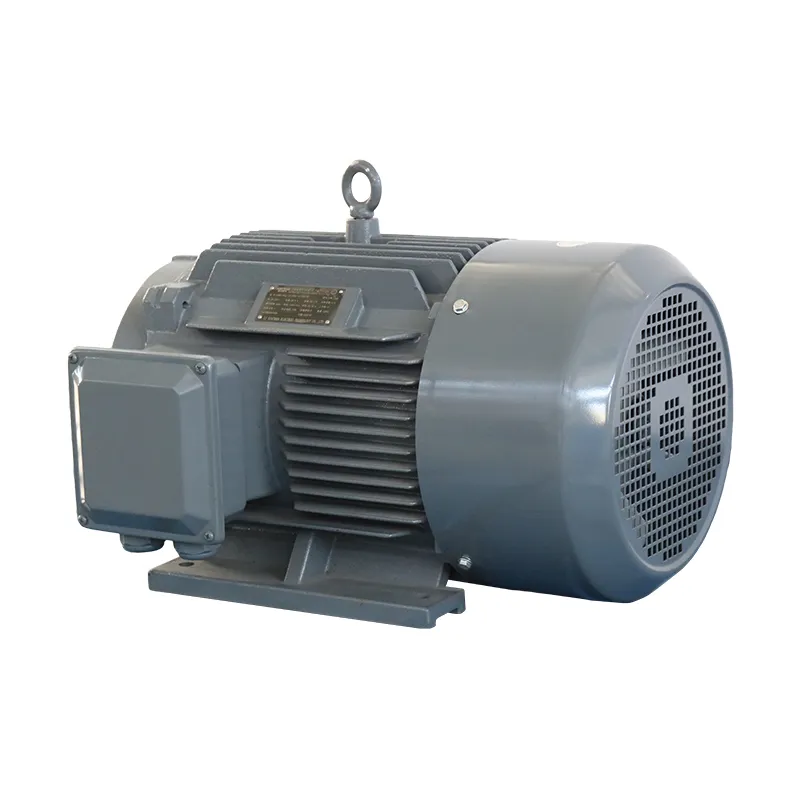

361A6004
361A6006
361A6007
361A6008
361A6021
361A6023

Due to its many advantages, permanent magnet synchronous motor (PMSM) has been widely used in social life and industrial production. In addition, China is vast and rich in mineral resources. Therefore, Waland Motor must conduct in-depth and meticulous research on the control of permanent magnet synchronous motors, so as to apply what it has learned and return knowledge to the world. Vector control and direct torque control are two very mature control strategies, each with its own advantages in daily life and engineering applications. Now, sensorless control has also gradually entered our daily life and become a new trend in the development of permanent magnet synchronous motors.



Development history of permanent magnet synchronous motors,



The development history of permanent magnet synchronous motors (PMSM) began in the early 20th century. With the advancement of electromagnetic material science and power electronics technology, PMSM has been continuously developed and improved in various historical stages.



Early research and development (1900s-1950s):

In the late 19th century and early 20th century, permanent magnet materials such as natural magnets such as magnetite were used in early permanent magnet synchronous motors, but their performance and applications were very limited.

In the 1930s, the emergence of Alnico (aluminum nickel cobalt) alloy greatly increased the energy product of permanent magnets, and permanent magnet synchronous motors began to have more practical applications.

Semiconductor technology leads a new era (1960s-1980s):

In the 1960s, with the emergence of crystalline silicon rectifiers and power transistors, power electronics technology has made rapid progress, which directly promoted the progress of PMSM control technology.

The development of permanent magnet materials is also constantly breaking through. For example, the emergence of rare earth permanent magnet materials has significantly improved the performance of motors.

Fusion of power electronics and computer control (1990s-2000s):

In the 1990s, with the commercial production of high-performance rare earth permanent magnet materials (such as neodymium iron boron NdFeB), the performance of PMSM has made a qualitative leap.

During this period, the application of microprocessors also became popular, and precise control of motors became possible.

The era of intelligence and high efficiency (2000s-present):

In the 21st century, power electronics technology and control algorithms have been further improved, which has optimized the energy efficiency and intelligent control of permanent magnet synchronous motors.

PMSM is widely used in electric vehicles, wind power, industrial automation and other fields, and has become an important part of renewable energy and energy conservation and emission reduction strategies.

International cooperation in technological development (under the background of globalization):

With the development of globalization, scientific research institutions and enterprises in different countries and regions have carried out extensive technical cooperation and exchanges in the field of PMSM, promoting the integration and innovation of technology.

Permanent magnet synchronous motors will continue to develop. With the emergence of new materials and new technologies and the improvement of environmental protection requirements, PMSM will continue to develop in the direction of high efficiency, energy saving, miniaturization and intelligence.



Space vector pulse width modulation (SVPWM) method in vector control. Based on the use of SVPWM method, the traditional sliding mode control algorithm (traditional-SMO) and the sliding mode control algorithm (SMO-dq) in the synchronous rotating coordinate system in the sensorless control technology based on the fundamental wave mathematical model are introduced; and the above three strategies are simulated in MATLAB/Simulink. The simulation results show that the control effect of the motor by the traditional sliding mode control algorithm can be comparable to that of the SVPWM method in vector control, while the control effect of the sliding mode control algorithm in the synchronous rotating coordinate system is slightly worse than the former two. This paper then introduces direct torque control (DTC) and its improved algorithm: direct torque control based on sliding mode control (SMO-DTC), and simulates the above two algorithms in MATLAB/Simulink. The results show that the improved algorithm can improve the speed regulation performance and reduce torque pulsation. As a manufacturer of permanent magnet synchronous motors, our control strategy and the construction of the simulation platform have been completed, providing a solid theoretical foundation for practical applications. Finally, based on the simulation, the SVPWM method is used to complete the design of the hardware circuit with DSP+FPGA as the core, and then the design and writing of the algorithm are completed on this basis, the experimental platform is built and online debugging is carried out. The debugging results show that the system achieves good control performance.
