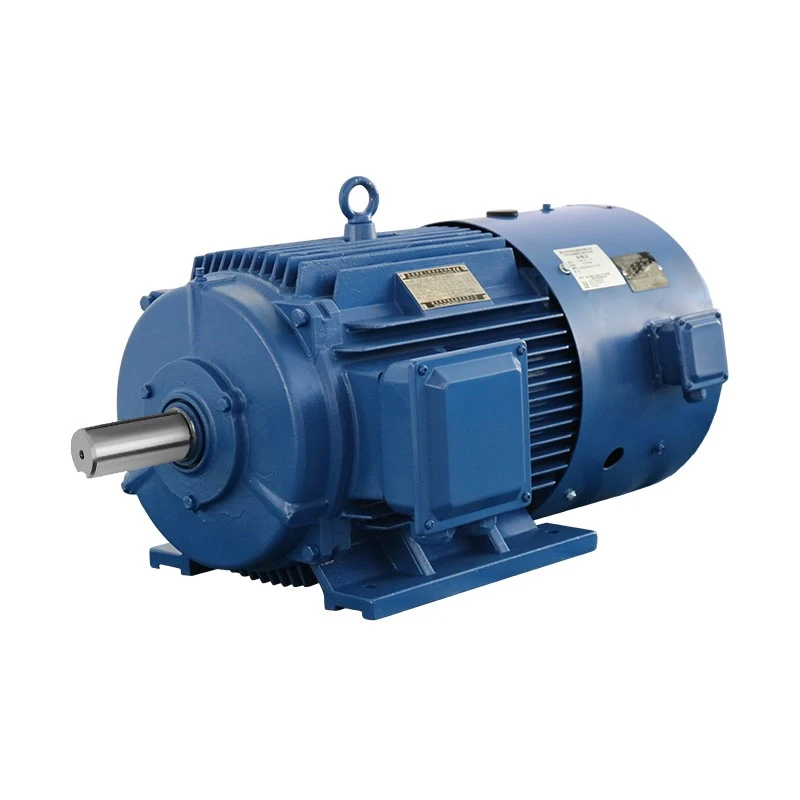

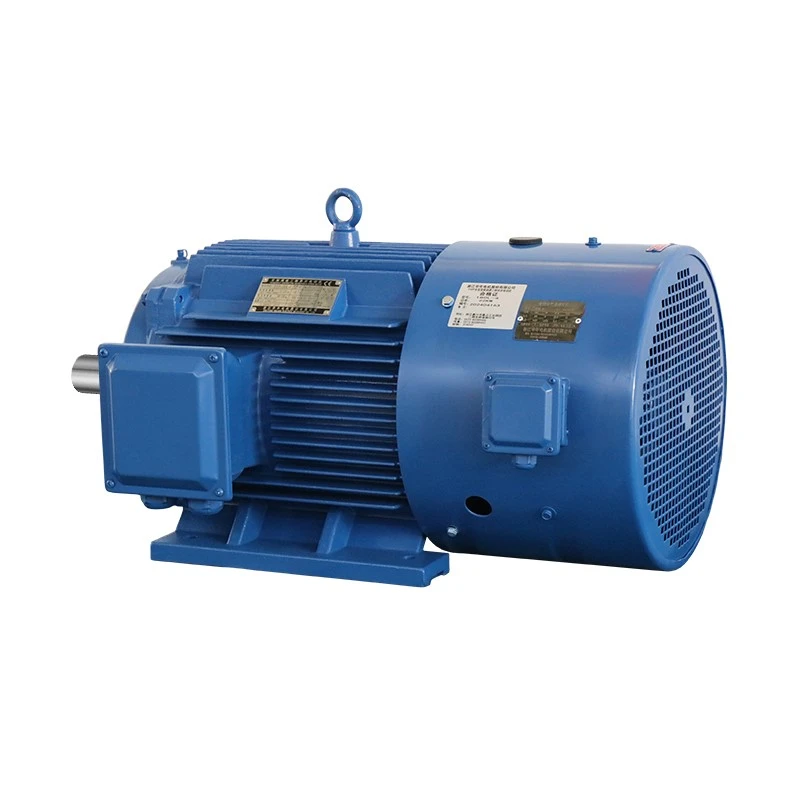

2hp Motor With Vfd
2hp motor with vfd
High performance management:
The combination of this 2-horsepower motor and a variable frequency drive (VFD) can intelligently adjust the speed according to actual load requirements to ensure optimal energy efficiency under various operating conditions. VFD adjusts the motor's operating status in real time based on feedback information, avoiding energy waste at low loads. This flexibility not only improves the energy efficiency of the system but also significantly reduces operating costs. In practical applications, this kind of motor can bring lower energy consumption to users, especially in continuous operation or variable load situations, the energy efficiency advantage is more obvious.
Precise control:
The introduction of VFD enables the motor to achieve precise speed and torque control, which is suitable for applications that require fine adjustment, such as pumps, fans, conveyor belts and other equipment. Users can set the target speed according to specific needs. This flexibility allows operators to make fine adjustments under different process conditions, greatly improving the flexibility and efficiency of the production process. In addition, precise control reduces mechanical wear and tear on the equipment, thereby extending the service life of the overall equipment and reducing replacement and maintenance costs.
Overload protection:
The motor and VFD system are equipped with complete overload protection functions. When an abnormal load is detected, the system will automatically reduce the output power to avoid motor overheating or damage. This feature ensures the safety of the equipment in unexpected situations and avoids possible high repair costs and downtime losses. The design of the overload protection mechanism enables the motor to operate stably under complex working conditions, significantly improving user confidence and equipment reliability, and ensuring long-term and efficient operation.
Easy to install and maintain:
The design of this motor is very simple, the installation process is fast and efficient, and users can easily complete the debugging and configuration of the equipment. The monitoring function of VFD allows users to monitor the operating status of the motor in real time, and can provide timely feedback on abnormal conditions to facilitate troubleshooting and maintenance. This intelligent monitoring system reduces the labor costs required for traditional maintenance. Users only need to perform simple inspections regularly, significantly reducing later maintenance costs.
Adaptable:
Suitable for a variety of industrial environments, the motor is robustly designed to operate reliably in harsh conditions such as high, low, wet or dusty conditions. This adaptability makes it an ideal choice for many industries such as water treatment, manufacturing and construction, and can meet the needs of different process flows to ensure the continuity and stability of production.
Technical Specifications
| Parameter | Specification |
| Motor Power | 2 Horsepower (HP) |
| Voltage | 230V or 460V (depending on model) |
| Phase | Single-phase or Three-phase |
| Frequency | 50Hz / 60Hz |
| Rated Speed | 1800 RPM (standard) |
| Torque | Rated Torque: 8.5 Nm (approx.) |
| Efficiency | 85% - 90% |
| Insulation Class | Class F (155°C) |
| Protection Class | IP54 (dust and water resistant) |
| VFD Model | Compatible VFD (Variable Frequency Drive) |
| VFD Control Method | V/f control or vector control |
| VFD Output Voltage | 0 to rated voltage (230V or 460V) |
| VFD Output Frequency | 0 to 400 Hz |
| VFD Current Rating | 10A (approx.) |
| Start Method | Direct, Soft Start, or VFD |
| Dimensions (Motor) | Length: 15 in (381 mm) |
| Width: 10 in (254 mm) | |
| Height: 10 in (254 mm) | |
| Weight (Motor) | 50 lbs (approx.) |
| Ambient Temperature | -10°C to 50°C |
| Cooling Method | Air-cooled |
Application areas of this product
Manufacturing Applications:
In various production lines, 2 HP motors are widely used in conveyors, agitators and other mechanical equipment due to their powerful driving capabilities. The high efficiency and durability of the motor enable it to maintain stable operation under heavy load conditions, ensuring the continuity of the production process. By working with a variable frequency drive (VFD), the speed and torque of the motor can be flexibly adjusted according to specific needs. The advantage of this flexible control is that the speed during the production process can be precisely adjusted, thereby improving production efficiency and reducing energy consumption. At the same time, precise speed control also helps to reduce material waste, optimize resource utilization, and reduce production costs.
Textile Industry Applications:
In the textile industry, 2 HP motors are widely used to drive looms and sewing machines. Its stable operating performance and efficient power output enable various textile processes to be carried out efficiently. By using VFD, the motor can achieve precise speed control to meet the different speed and torque requirements of different textile processes. This feature not only ensures the flexibility of the production process, but also improves the quality of the product. For example, during the weaving process, the speed of the motor can be adjusted according to the type and thickness of the fabric to ensure the uniformity and fineness of the weaving. For sewing machines, precise control of the motor is equally important, providing consistent stitching quality during
Installation Method:
| Structure and installation type (IM code)) |
IM B3 | IM B8 | IM B5 | IM B6 | IM V5 | IM V1 | IM B7 | IM V6 | IM V3 |
| Installation diagram |  |
 |
 |
 |
 |
 |
 |
 |
 |
| Frame size | 63-450 | 63-160 | 63-280 | 63-160 | 63-160 | 63-450 | 63-160 | 63-160 | 63-160 |
| Structure and installation type (IM code)) |
IM V37 | IM V17 | IM B34 | IM V19 | IM V18 | IM B14 | IM V35 | IM V15 | IM B35 |
| Installation diagram |  |
 |
 |
 |
 |
 |
 |
 |
 |
| Frame size | 63-132 | 63-13 | 63-132 | 63-132 | 63-132 | 63-132 | 63-160 | 63-160 | 63-450 |
FAQ
Question 1: What is the energy efficiency of this motor and what energy-saving effects can it bring to the company?
Answer: The combination of this motor and a variable frequency drive can significantly improve the energy efficiency of the system. By adjusting the speed according to the actual load demand, unnecessary waste of energy is avoided. For example, under low load conditions, the motor can automatically reduce its operating speed, thereby reducing power consumption. In long-term use, enterprises can achieve significant energy-saving effects and reduce electricity bills.
Question 2: How does this motor perform in different working environments?
Answer: This motor is designed to be rugged and able to operate reliably in hot, cold, humid or dusty environments. Its protection level is high and can prevent the intrusion of water and dust, making it suitable for a variety of industrial scenarios. This motor maintains stable performance whether in harsh environments or under standard industrial conditions.
Question 3: What are the installation and maintenance requirements?
Answer: The installation process is relatively simple and users only need to follow the guidelines provided by the manufacturer to connect and configure. In terms of daily maintenance, regular inspection of the connection, lubrication and cooling systems of the motor and inverter is necessary. In addition, modern motors are equipped with monitoring systems that can provide real-time feedback on operating status, making it easier for users to troubleshoot and reduce maintenance complexity and costs.
Question 4: Is the motor's control system flexible and can it be integrated with other equipment?
Answer: The control system of this motor is very flexible, supports multiple control protocols, and can be easily integrated with other devices, such as PLC and HMI. Users can create complex automated control systems as needed to improve production efficiency. Through remote monitoring, operators can adjust parameters in real time to further optimize the production process.
Question 5: How can this motor ensure stable operation under load fluctuations?
Answer: The combination of this motor and variable frequency drive has excellent dynamic response capabilities and can quickly adapt to load changes. When the load suddenly increases or decreases, the control system will adjust the speed immediately to ensure stable operation of the equipment. In addition, the built-in overload protection function can reduce the output in time when abnormal conditions are detected to protect the motor from damage.
Question 6: How will this motor perform for future scalability?
Answer: This motor has good scalability and can be adjusted and upgraded according to production needs. Users can easily replace or upgrade the control system to adapt to different working conditions. Its modern design also supports software updates to further improve performance and functionality, ensuring long-term adaptability.
Question 7: What is the noise and vibration level of this motor?
Answer: Due to the smooth regulation of the variable frequency drive, this motor produces low levels of noise and vibration during operation, making it suitable for use in places that require a quiet environment, such as laboratories, medical equipment, or high-end manufacturing. This low-noise feature not only improves the comfort of the work environment, but also helps reduce interference with other equipment.
