Waste Paper Recycle System

Waste Paper Recycle System For Making Fluting Paper Pulp, Kraft Paper Pulp From OCC In Paper Industrial

• Payment :T/T, L/C
• Color :As Customer Required
• Shipping Port :HANGZHOU
• Lead Time :3 Months
• Min. order :1 Set

Conveyer

Conveyer is used for conveying waste recycle paper to pulper, it is efficient and energy-saving

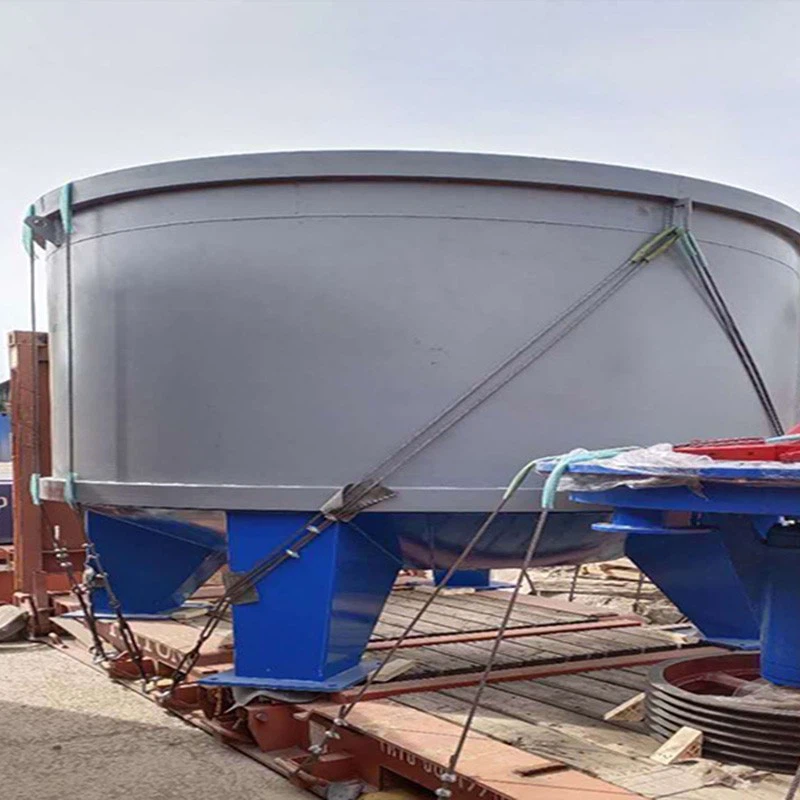

D-type Pulper is mainly used to pulp all kinds of pulp board, broke and waste paper. The Vokes Rotor deviates from the center position, which makes the pulp contact with the rotor more quickly and frequently, it changes pulp flow ways. Traditional hydraulic pulper produces unimpeded swirling flow, and the material moves from the feeding position to the central rotor following a helix line, while D-type hydrapulper changes this mode, which makes material contact with the rotor more quickly, shorten the time from feeding to pulping, improve the production capacity.

D Pulper,

High Consistency Hydraulic Pulper,

Mid-Consistency Hydraulic Pulper

Screening Equipments

Here are Coarse Screen, Fine Screen, Inflow Pressure Screen, Defibrator, Fiber Sorter, Reject Separator, Vibrating Screen, Hill Screen, Thickner, and so on

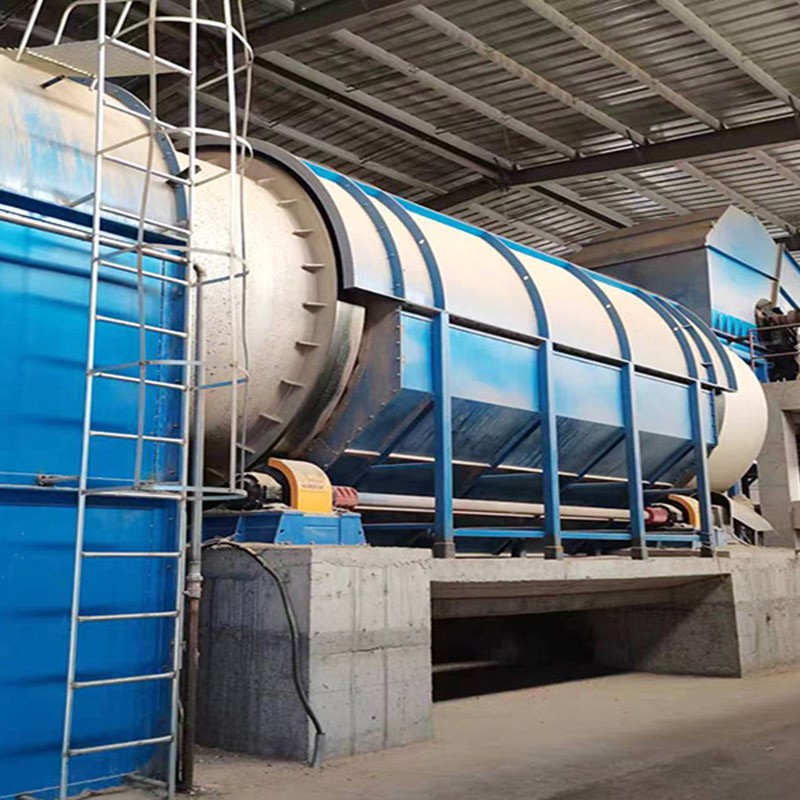

Drum Screen, Hydrapurger, Ragger, Rope Cutter, Grappler, High Density Cleaner, Middle Density Cleaner, Low Density Cleaner and so on

Dienking System

The high-speed pulp washing machine feeds the pulp into the gap between the polyester mesh and the breast roller through the headbox. The breast roller drives the mesh and the couch roller to operate at high speed. The pulp at the breast roller is subjected to the combined action of the extrusion pressure of the mesh and the breast roller and the centrifugal force generated by the high-speed operation, enabling the pulp to be dehydrated and washed. When the pulp reaches the roller along the mesh, it is further dehydrated by the extrusion and centrifugal force of the mesh and the couch roller, Then, the slurry is scraped from the couch roller into the discharge screw by a scraper. In the above process, due to the thin pulp layer between the mesh and the roller, the ink particles, fillers, and other fine impurities in the pulp are rarely hindered by the pulp layer during the removal process, and are easily removed with water.

Purpose and characteristics of closed flotation deinking machine: The fully closed multistage flotation equipment uses a special structure of interstage separation device to form a hierarchical multistage flotation, preventing the mixing of pulp between different flotation stages. The dispersion of air and the mixing of pulp are accomplished by a specially developed non clogging jet system. This unique device structure allows the pulp to undergo internal circulation, and the air is used multiple times in the pulp, Greatly improve the utilization rate of air and the deinking rate of pulp. This equipment has significant advantages such as high deinking efficiency, high whiteness of the deinked pulp, good brightness, high ink removal concentration (up to standard 3% or more), minimal fiber loss, small floor area, simple operation and control, and low energy consumption. This equipment is suitable for flotation deinking of various types of waste paper at home and abroad. While removing ink, some lightweight adhesives and lightweight plastics can also be significantly removed.

Used for pulping line with materials of wood, straw, bamboo, bagasse and so on.

Disc Filter

As the latest generation of white water recovery and pulp thickening equipment, this product can save energy,reduce water consumption and fiber loss,while protect the environment and prevent pollution. It is mainly suitable for white water recovery in paper mills, and its performance is superior and meets advanced national standards.

In the white water recovery process, the fiber recovery rate is high, water circulation is achieved, water consumption is reduced, and white water pollution is prevented.

The fan-shaped plate has excellent structure with high strength, easy disassembly, large effective filtration area and good filtration effect.

The equipment products have complete specifications and various diameters, and filtration area can be changed according to different production requirements.

The adjustable distribution valve made of special wear-resistant material has good sealing effect. The composite sealing tape can provide the maximum sealing effect.

Compact structure, small area occupied and high yield.

Good economic and social benefits

Refiner

Double Disc Refiner, Conical Refiner, High Density Refiner, etc.

Corollary Equipments

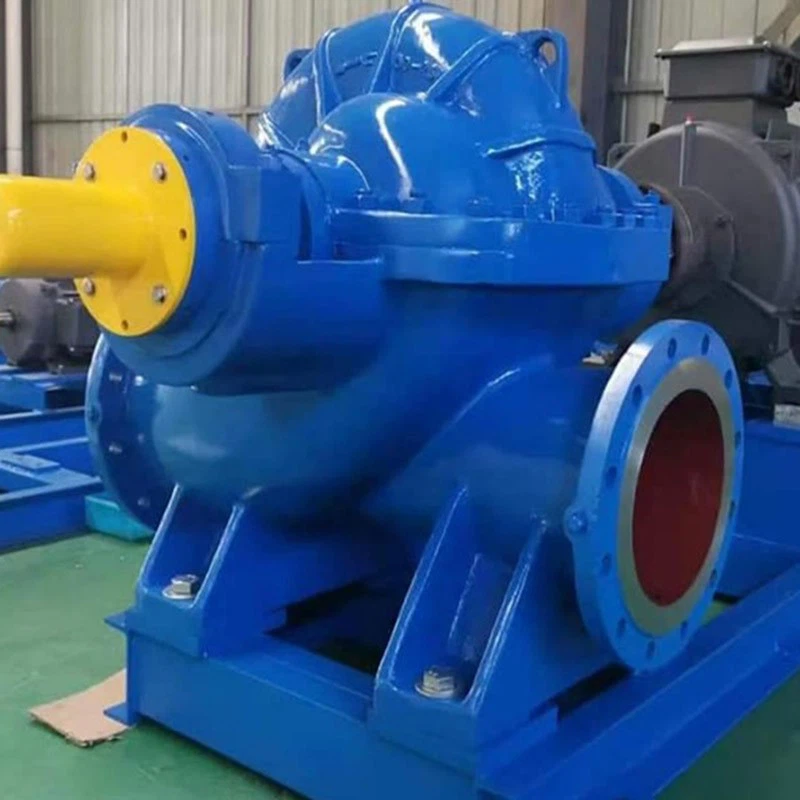

Pulp Pump, Water Pump, Agitator, Stainless Steel Pulp Tank, Pipeline, Valves

Pulping line equipments for making pulp from different materials,like waste recycle paper,wood, bamboo, bagasse, straw and so on

D Pulper of Paper Making

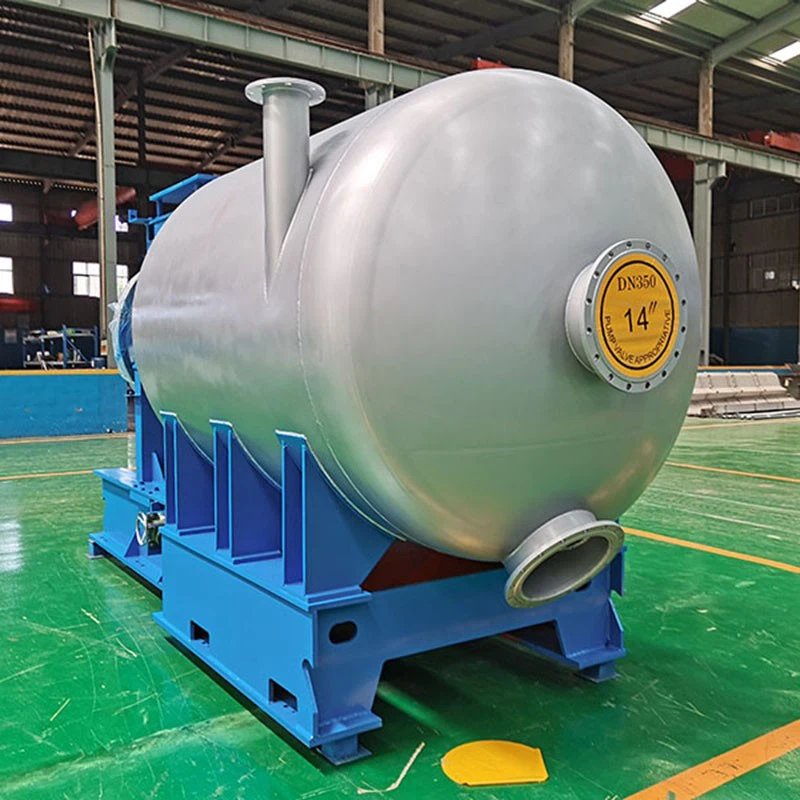

Pulp Making Machinery
