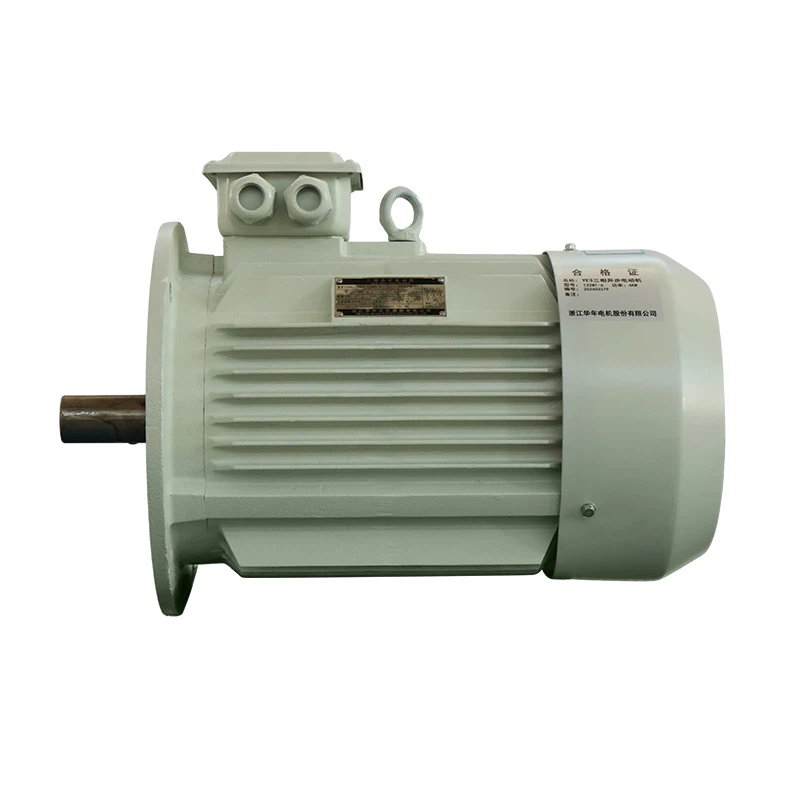

High Power Brushless Motors

High power output:The design of high -power brush -free motor is designed to provide excellent power output, which can maintain stable operation under high load conditions. This motor uses advanced electromagnetic design, equipped with high -efficiency stator and convertible system to output large torque and power. In industrial machinery, this high -power output can drive large equipment and complex machinery, such as efficient production lines and precision manufacturing equipment. In the field of aerospace, it provides strong power support for aircraft and meets strict performance requirements. For high -performance electric vehicles, the motor can achieve rapid acceleration and continuous high -speed driving, which significantly improves the driving experience and the overall performance of the vehicle. In short, high -power output ensures the excellent performance of the equipment under high requirements operation, and meets the application requirements of various complex and high loads.

Brushless design:This electric motor uses a brushless design to completely get rid of the brushes and diversion in the traditional motor. The brushless design has significantly improved the durability and reliability of the motor by reducing mechanical wear. The wear problem of brushes in traditional motors often leads to frequent maintenance and decline in performance, while brushless motors avoid these problems. The brushless structure inside the motor not only eliminates the wear of the wiper, but also reduces the arc and electromagnetic interference, and improves the work efficiency. The brushless design also greatly reduces the maintenance needs, saves maintenance costs, while prolonging the service life of the motor, making it perform well in the application scenario that requires high stability and low maintenance.

High -efficiency operation:High -power brush -free motor has excellent energy efficiency performance. Its design optimizes the process of transforming electrical energy into mechanical energy and reduces energy loss. High -efficiency operation can effectively convert more electrical energy into kinetic energy, so that the equipment can still maintain efficient performance when running for a long time. In industrial automation and robotic systems, the continuous high -load operation has high requirements for energy efficiency, and the efficiency of motors will help reduce overall energy consumption and operating costs. In addition, less heat generates the motor, which helps maintain the stable working state of the equipment, and reduces the risk of performance and failure due to overheating.

Advanced cooling system:In order to cope with the heat brought by high -power output, the motor is equipped with an efficient cooling system, which usually uses liquid cooling or cold -cold technology. These cooling systems can effectively manage the heat of the motor in high -load operation to ensure that the motor is maintained within a safe temperature range. The liquid cooling system takes away the heat inside the motor through a circulating coolant, while the air -cooled system uses air flow to take away the heat. Efficient cooling not only prevents the motor overheating, but also improves the stability and reliability of the motor. Long -term high load operation will not cause overheating problems, thereby extending the service life of the motor and ensuring the long -term stability of the equipment.

Compact and high -power density design:The motor has a compact structural design, which allows it to provide powerful power output in a limited space. High -power density design is achieved by optimizing the internal structure and materials of the motor, so that it maintains high performance while reducing the occupation space. This design is particularly suitable for limited applications, such as aircraft and small industrial equipment. In the aircraft, the compact motor can provide sufficient power support in a limited cabin space, and in small industrial equipment, the reduced volume and weight can improve the control of the equipment. The compact design also helps reduce the weight of the whole machine, improve the overall performance and energy efficiency of the equipment, and provide flexible installation options for multiple applications.







Application areas of high power brushless motors



High -performance electric vehicle:
High -power brushless motors are widely used in high -performance electric vehicles, such as electric sports cars and high -end electric SUVs. Its powerful power output and excellent torque characteristics make electric vehicles perform well during acceleration, providing the ability to accelerate speed and high speed. The high -power density and precise control of this motor supports high -power demand, such as track driving and highway cruise. The high efficiency and low noise characteristics of the motor also improve the driving comfort and overall performance of electric vehicles, and meet the dual demand of high -end markets for performance and environmental friendliness.



Industrial automation and robots:
In the field of industrial automation and robotics, the application of high -power brush -free motor is also very wide. They can drive various industrial machinery and automated equipment, such as heavy machinery, precision robotic arms and high -load transmission systems on the production line. The efficient and reliability of these motors ensure that the equipment is running stably under long and high load conditions, reducing maintenance needs and shutdown time. Especially in the high -precision and high -speed automation tasks, such as packaging, assembly and testing processes, the advanced control system and high power output of the motor can improve production efficiency and operating accuracy, support complex industrial applications and high -efficiency production processes Essence.



Installation Method:





Structure and installation type (IM code))	IM B3	IM B8	IM B5	IM B6	IM V5	IM V1	IM B7	IM V6	IM V3
Installation diagram
Frame size	63-450	63-160	63-280	63-160	63-160	63-450	63-160	63-160	63-160
Structure and installation type (IM code))	IM V37	IM V17	IM B34	IM V19	IM V18	IM B14	IM V35	IM V15	IM B35
Installation diagram
Frame size	63-132	63-13	63-132	63-132	63-132	63-132	63-160	63-160	63-450















FAQ

1.What is the maximum power output of the motor?
The motor provides a maximum power output of 100 kW, which significantly impacts its performance in demanding applications. This high power output allows the motor to deliver substantial torque and speed, essential for applications such as high-performance electric vehicles and industrial machinery. In electric vehicles, this means rapid acceleration and high-speed capabilities, enhancing the overall driving experience. For industrial uses, the high power enables the motor to handle heavy loads and operate efficiently in high-demand environments, improving productivity and operational efficiency.

2.What type of cooling system is used, and how does it contribute to the motor's reliability?
The motor utilizes a liquid cooling system to manage the heat generated during operation. This cooling method ensures that the motor remains at optimal temperatures even under high loads and extended use. Effective cooling prevents overheating, which can lead to performance degradation and potential damage. By maintaining a stable temperature, the cooling system enhances the motor's reliability, reduces the risk of thermal failure, and ensures consistent performance over long periods of operation.

3.How efficient is the motor, and what are the implications for energy consumption and operating costs?
The motor has an efficiency rating of 97%, which translates to high energy conversion from electrical input to mechanical output. This high efficiency reduces energy losses, leading to lower energy consumption and operational costs. In practical terms, it means that the motor consumes less power to achieve the same performance levels compared to less efficient models. For electric vehicles, this results in a longer driving range per charge, while for industrial applications, it leads to reduced energy expenses and improved cost-effectiveness.

4.What is the operating temperature range of the motor, and how does it handle extreme environmental conditions?
The motor is designed to operate within a temperature range of -40°C to 60°C. This wide range ensures that the motor can function reliably in extreme environmental conditions, from very cold to very hot climates. The robust construction and advanced materials used in the motor help it withstand temperature fluctuations without compromising performance. This makes it suitable for use in diverse environments, including outdoor and industrial settings where temperature extremes are common.

5.What kind of control system is integrated into the motor, and how does it enhance performance and flexibility?
The motor features an advanced Field-Oriented Control (FOC) system. This sophisticated control technology optimizes the motor's performance by precisely managing torque and speed. The FOC system allows for smooth and responsive operation, enabling precise control over acceleration and deceleration. It also supports various driving modes and operational settings, providing flexibility to adapt to different application requirements and enhancing overall performance.

6.What are the maintenance requirements for this motor, and how do they impact long-term operational costs?
The motor's maintenance requirements are minimal due to its robust design and absence of brushes, which eliminates issues related to brush wear. The sealed bearings and advanced cooling system further reduce the need for frequent maintenance. This low maintenance requirement translates to reduced downtime and lower long-term operational costs. Fewer maintenance interventions mean less disruption to operations and decreased labor and parts costs, making the motor a cost-effective choice for both industrial and high-performance applications.
