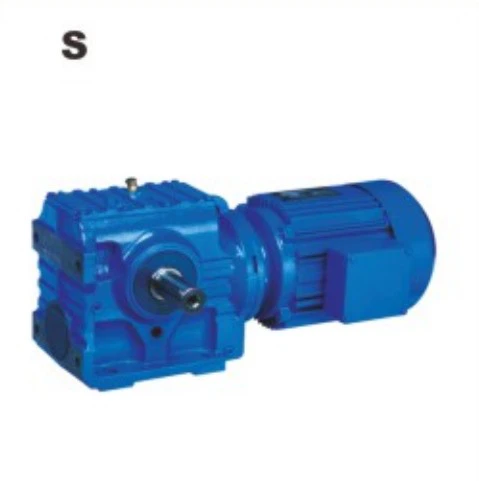

Shaft Mounted Speed Reducer Gearbox

A shaft-mounted speed reducer gearbox is a type of gearbox that is directly mounted onto the driven shaft of machinery, eliminating the need for couplings, baseplates, or additional support structures. This design is commonly used in applications where space is limited, and ease of installation is critical.



Key Features

Direct Mounting

The gearbox is mounted directly onto the driven shaft (e.g., conveyor, mixer, or auger shaft) using a torque arm or reaction bar to prevent rotation.

No need for alignment between motor and gearbox since it attaches directly to the machine shaft.



Compact & Space-Saving

Eliminates the need for extra frames or bases, making it ideal for tight spaces.



High Torque Capacity

Designed to handle high radial and axial loads due to its rigid mounting.



Easy Maintenance & Installation

Quick mountingdismounting without disassembling the entire system.

Often includes hollow bore or keyed shaft connections.

Versatile Applications

Commonly used in conveyors, mixers, augers, crushers, and other industrial machinery.

Common Types of Shaft-Mounted Gearboxes
Worm Gear Reducers – Compact, right-angle drive, high reduction ratios.

Helical Gear Reducers – Efficient, high torque, smoother operation.

Planetary Gearboxes – High power density, precise motion control.

Advantages
✔ Reduces misalignment issues (no coupling needed).
✔ Saves space & cost (no additional mounting structures).
✔ Absorbs shock loads better than traditional gearboxes.
✔ Modular design allows for easy replacement.

Disadvantages
✖ Requires a sturdy driven shaft (cannot be used with weak shafts).
✖ May need a torque arm for stabilization.
✖ Not suitable for all applications (e.g., where shaft access is restricted).

Typical Applications
Conveyor systems

Agricultural machinery (augers, mixers)

Food processing equipment

Mining & material handling

Packaging machinery

Selection Considerations
Shaft diameter & load capacity

Required speed ratio (reduction)

Mounting orientation (horizontalvertical)

Environmental conditions (sealing for dustmoisture)
