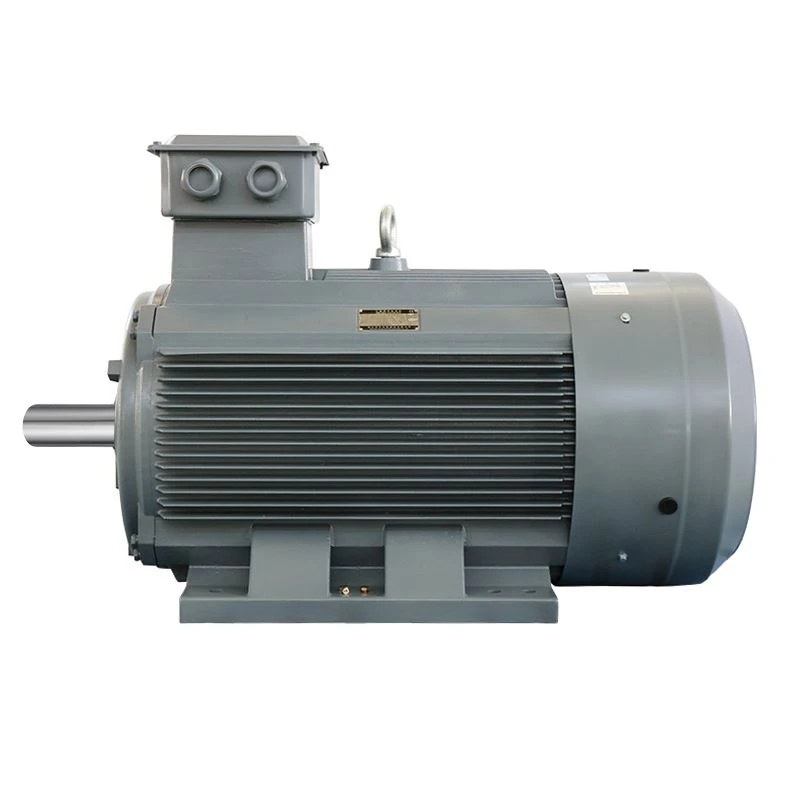

3 Phase Induction Motor

The 3 phase induction motor is mainly composed of two parts: the stator and the rotor. The speed of the three-phase induction motor is usually slightly lower than the synchronous speed of the stator. This difference is called the slip rate. Due to its excellent starting performance and high efficiency, the three-phase induction motor is widely used in various industrial equipment such as machine tools, fans, water pumps and compressors, and has become an indispensable and important power equipment in modern social production and life.

Send Inquiry

Products Description

If you are looking for an efficient, durable and economical motor, then our 3 phase induction motor is your best choice. With its sturdy structure and excellent performance, this motor is suitable for a variety of industrial occasions. Whether it is driving machine tools, fans, pumps, or used for elevators and conveyor belts, it can provide excellent power and stable operation. The induction motors we provide are not only easy to maintain and have a long service life, but also have extremely high starting performance and efficiency, ensuring that your equipment always runs at its best. Choose our three-phase induction motors to improve your production efficiency and enjoy a worry-free power solution!

Product Parameters

Rated power	0.75 kW to 500 kW
Rated voltage	380V / 440V / 660V / 1000V
Frequency	50Hz / 60Hz
Speed	750 RPM / 1000 RPM / 1500 RPM / 3000 RPM
Number of poles	2 poles / 4 poles / 6 poles / 8 poles
Efficiency level	IE2 / IE3 / IE4
Insulation class	Class F / Class H
Protection level	IP55 / IP65
Cooling method	IC411 (self-contained air cooling) / IC416 (external fan cooling)
Installation method	B3 (horizontal foot installation) / B5 (vertical flange installation) / B35 (horizontal flange foot combination installation)
Ambient temperature	-20°C to +40°C

Main features

Simple and strong structure: The three-phase induction motor has a relatively simple structure, no brushes and commutators, easy maintenance and long life.

Low cost: Due to its simple structure, the manufacturing cost and maintenance cost are low.

High efficiency and reliability: high efficiency, good power factor, stable and reliable operation.

Good starting performance: large starting torque, low starting current, suitable for heavy load starting.

Operation process

Generate a rotating magnetic field: When three-phase alternating current passes through the stator winding, the stator generates a rotating magnetic field.

Induced electromotive force: The rotating magnetic field cuts the rotor bars and induces electromotive force in the rotor bars.

Induced current: The induced electromotive force generates current in the rotor bars, forming an induced current.

Torque generation: Under the action of the rotating magnetic field, the induced current generates electromagnetic torque to rotate the rotor.

FAQ

Q1: What is the working of 3 phase induction motor?

A: The three-phase alternating current generates a rotating magnetic field through the stator winding, which cuts the rotor bars and induces electromotive force and current. These induced currents generate electromagnetic torque under the action of the rotating magnetic field, causing the rotor to rotate. The rotor speed is always slightly lower than the synchronous speed. This difference is called slip. In this way, the motor can effectively convert electrical energy into mechanical energy.

Q2: How to control a 3 phase induction motor?

A: The control of a three-phase induction motor is mainly achieved through a frequency converter, which can adjust the power supply frequency and voltage, thereby changing the speed and torque of the motor. In addition, star-delta starters and autotransformer starters can also be used to control the starting process and reduce starting current and impact. In some applications, more precise and automated control can be achieved through PLC (Programmable Logic Controller) and various sensors to ensure efficient operation of the motor under different working conditions.

Q3: Why is it called induction motor?

A: The asynchronous nature of induction motors creates slip (the difference between the rotational speed of the shaft and the speed of the motor's magnetic field), which increases torque. These motors are powered by the stator, which produces an induced current, hence the name "induction" motor.

Q4: What are the starting methods for three-phase induction motors?

A: It can be started by direct starting, autotransformer starting, star-delta starting, etc.

Q5: What is star-delta starting?

A: Star-delta starting is a commonly used starting method that reduces the starting current by reducing the starting voltage and is suitable for squirrel cage motors.
